Solid Jencoder Shaft J-50S Supplier
SCB Industries proudly supplies the high-performance Solid Jencoder Shaft J-50S, a precision-engineered rotary encoder designed for industrial applications that demand accuracy, durability, and consistent performance.
As a leading Solid Jencoder Shaft J-50S Supplier in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi, we ensure industries get dependable motion feedback solutions that enhance machine efficiency and operational reliability. The J-50S model is built with a robust solid shaft, making it ideal for applications that require stable mechanical coupling and long-term reliability even in challenging environments.
Features
- Encoder designed for Induction motor feedback applications
- Robust design less than 52 mm diameter size with gland and dicast covers
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage
Channels:
R = ABZ
Q = AB
A =A
Output:
HV = 15mA source /sink up to 100°C without inverted channels
HVLD = 15mA source /sink up to 100°C with inverted channels
OC = 20mA sink type (NPN) without inverted channel
TTL / RS422 = 15mA source/sink up to 70°C with inverted channel at 5VDC
PPR:
see PPR option below
100,250,256,300,360,500,512,600,625,720,1000,1024,1200,
1250,1440,2000,2048,2500,5000
Voltage:
V3 = 5 to 26 VDC
For TTL Output 5 Volt only
Shaft Size:
8 = 8 mm

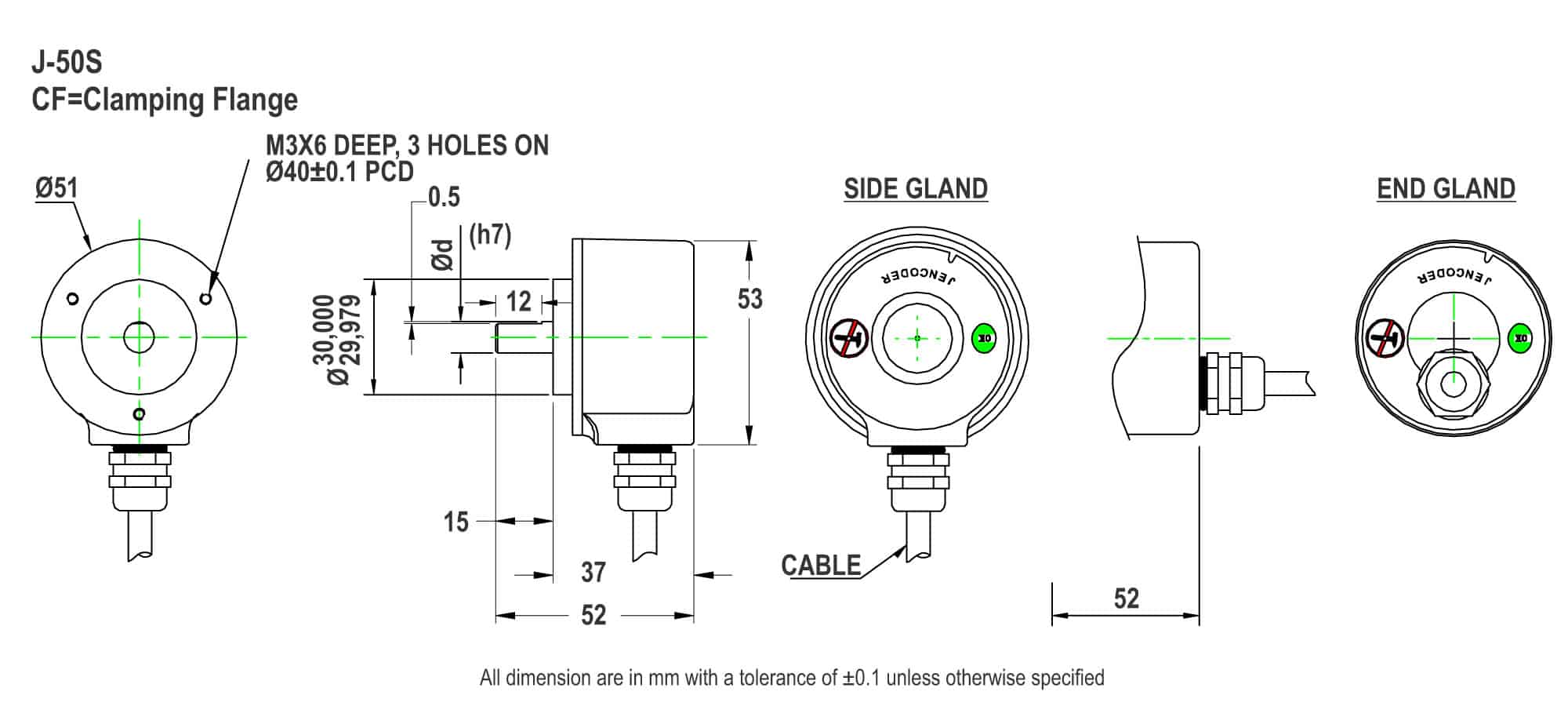

Mounting Options:
CF= Clamping Flange
SF= Square Flange
Grade of Protection:
1 = IP50
2 = IP54
Temperature:
S = -10 to 70°C
H = -20 to 100°C
Cable Outlet:
SG = Side Gland
EG = End Gland
CE Certified:
N = Standard
CE = CE Certified

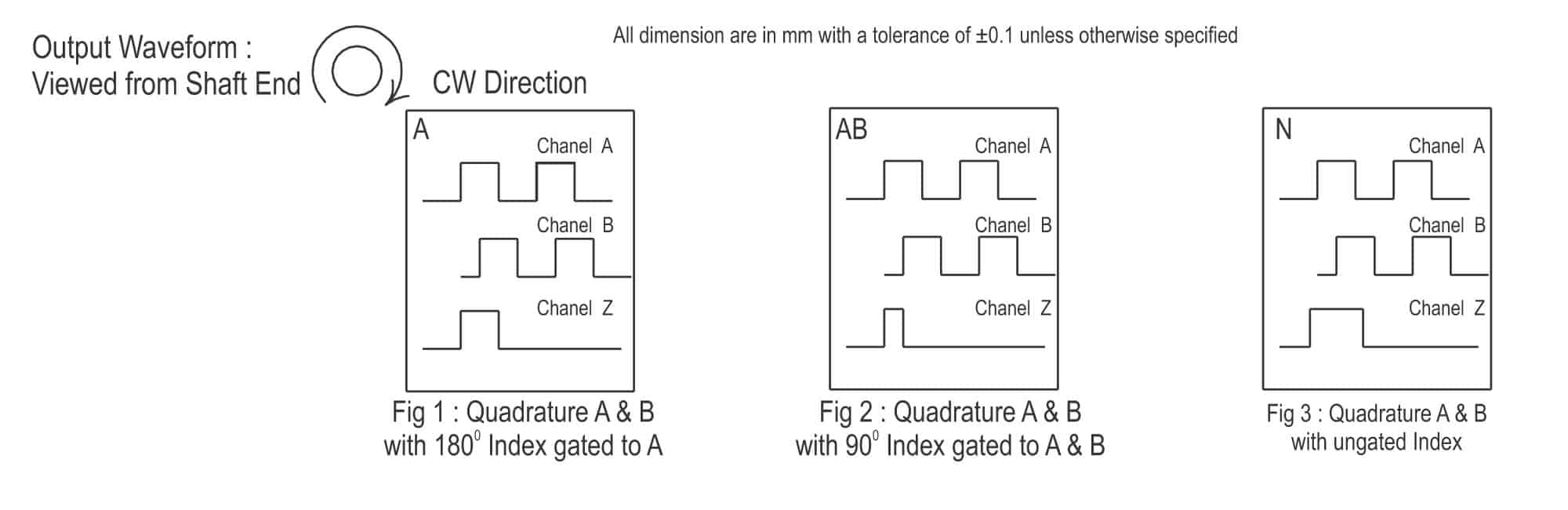

Z GATING:
N = A (Standard) = Quadrature A & B with 180° index gated to A
AB = Quadrature A & B with 90° index gated to A and B
N = Ungated
Cable Length:
N =1m, 2m, 5m
Key Features of Solid Jencoder Shaft J-50S
- High-Precision Signal Outputfor accurate speed, rotation, and position feedback
- Strong Solid Shaft Designensuring excellent mechanical stability
- Industrial-Grade Housingresistant to shock, vibration, dust, and temperature variations
- Smooth Rotation & Low Noise Performancefor sensitive and high-speed applications
- Long-Life Bearingsbuilt to support continuous operation
- Compact Constructionfor easy integration into new and existing machines
- Reliable Electrical Interfacecompatible with standard PLCs, drives, automation controllers, and motion systems
Top Benefits of Choosing SCB Industries
Choosing SCB Industries for your Solid Jencoder Shaft J-50S ensures:
- Reliable supply across major industrial regions
- Genuine, high-quality J-50S encoders sourced from trusted manufacturers
- Highly durable products designed for Indian industrial environments
- Competitive and transparent pricing
- Technical guidance for correct selection and installation
- Fast dispatch and excellent after-sales support
We prioritize customer satisfaction by offering product reliability, timely delivery, and expert assistance for all automation needs.
Applications of Solid Jencoder Shaft J-50S
Its accuracy and rugged construction make it ideal for both high-speed and heavy-duty applications. The Solid Jencoder Shaft J-50S is widely used for precision feedback in:
- Industrial automation systems
- Motors and variable-speed drives
- Packaging machines
- Conveyor systems
- Robotics and advanced motion control setups
- CNC machinery
- Printing and textile machinery
- Material handling equipment
- Elevators, hoists, and lifting machines
- Assembly and production lines
Affordable Solid Jencoder Shaft J-50S Without Compromising Quality
SCB Industries offers affordable pricing on the Solid Jencoder Shaft J-50S while maintaining superior product quality. We believe in delivering premium-grade performance without inflating costs, ensuring maximum value for every customer—small industries, OEMs, and large manufacturing units alike.
Innovative and Durable J-50S: Setting Industry Standards
This model sets a benchmark in encoder technology, making it a preferred choice for industries seeking long-term, maintenance-free performance. The J-50S Solid Jencoder Shaft is engineered to outperform conventional encoders in accuracy, lifespan, and mechanical consistency. Its innovative design ensures:
- Minimal wear and tear
- High resistance to harsh environments
- Maximum precision for automated processes
- Reliable output even under continuous duty cycles
Order Your Solid Jencoder Shaft J-50S Now and Save More
Upgrade your automation systems with SCB Industries’ premium Solid Jencoder Shaft J-50S.
We guarantee:
- Best prices
- Fast delivery
- 100% authentic products
