Mean Well DC-DC Converters SKMW40/DKMW40 Series Supplier
SCB Industries is the trusted Mean Well DC-DC Converters SKMW40/DKMW40 Series Supplier across multiple industrial regions. Our strong supply network, genuine product range, and technical support ensure that customers across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi always get premium quality Mean Well converters without delay.
MEAN WELL has received positive feedback on the 1″ x 1″ 6W/15W/20W/30W wide input range DC/DC converter since its release. In order to fulfill the higher wattage requirements, we’re officially releasing the 40W single output SKMW40 and dual output DKMW40 series.
The key features of SKMW40 and DKMW40 series are: Standardized pins and compact size that provide a better power solution for terminal equipment with limited volume, 4:1 (9~36Vdc/18~75Vdc) ultra-wide input range, ultra-wide operating temperature (-40～+80°C), 2000Vdc input-output isolation, full protections, the internal silicone gel potting would not only help dissipate heat and extend its lifetime, but also has dust/moisture-proofs and anti-vibration capabilities.
These features make these converters suitable for installation in electrical panels, telecommunication equipment, industrial automation, distributed power architecture, and transportation applications.

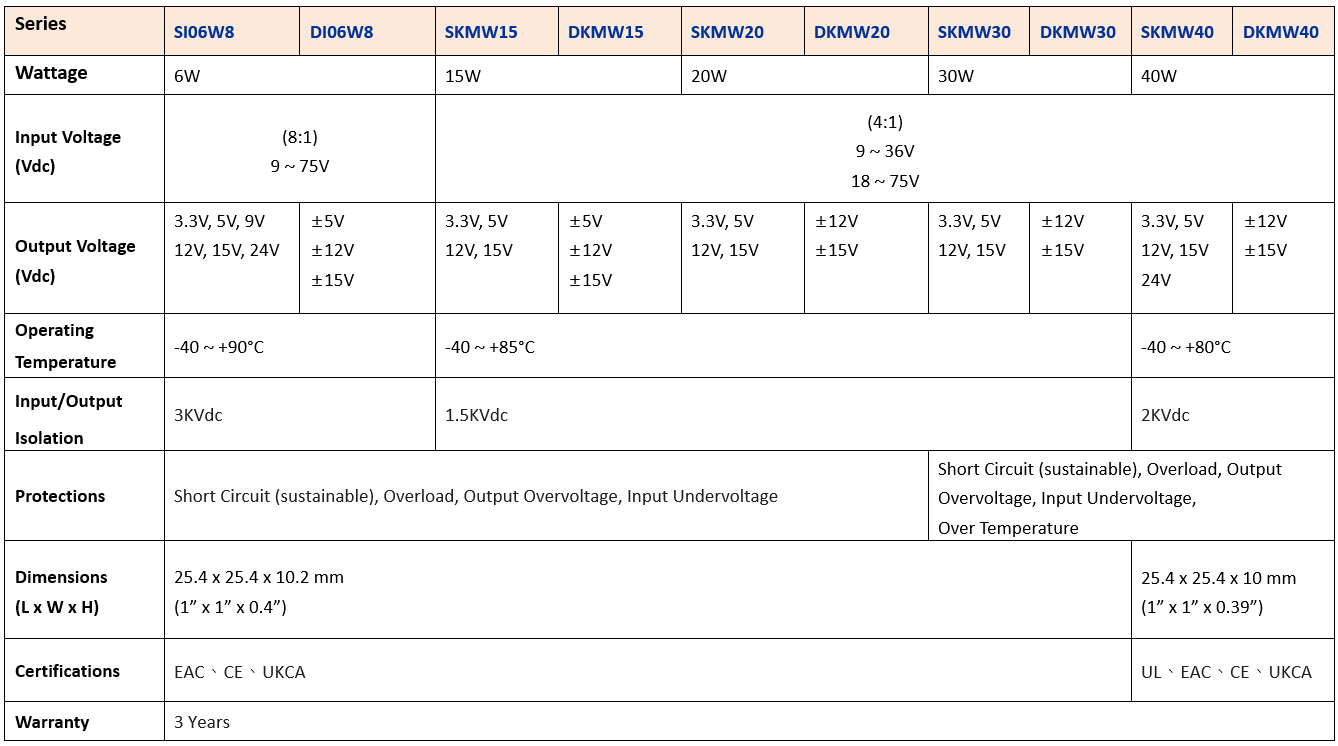

To help users quickly select from MEAN WELL’s 1″ x 1″ products, the following table is provided for reference:
Features
- 1″ x 1″ packaging, industrial standard pin-out
- 4:1 (9~36Vdc/18~75Vdc) wide input voltage range
- Free air convection, can operate between -40~+80℃
- No minimum load requirement
- Built-in remote ON/OFF control and adjustable output voltage ±10%
- Protections: Short Circuit, Overload, Overvoltage, Input Undervoltage, Over Temperature
- Dimensions (L x W x H): 25.4 x 25.4 x 10 mm
- Approvals: UL/ EAC/ CE/ UKCA
- 3 years warranty

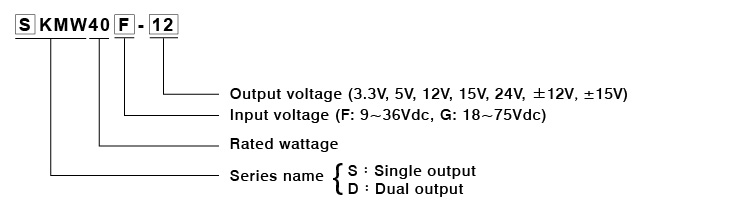

Order Information
Product Introduction – Mean Well DC-DC Converters SKMW40/DKMW40 Series
The Mean Well SKMW40 Series (4:1 wide input) and Mean Well DKMW40 Series (2:1 wide input) are high-performance 40W DC-DC converters designed for demanding industrial and automation environments. These compact modules deliver stable, noise-free and energy-efficient power in applications where reliability and safety cannot be compromised. SCB Industries supplies the complete range of Mean Well DC-DC Converters SKMW40/DKMW40 Series with fast delivery and expert technical assistance.
Benefits of Using Mean Well SKMW40/DKMW40 Series
- High Efficiency up to 90%
Ensures reduced energy loss and cooler operation.
- Ultra-Wide Input Range
- SKMW40: 4:1 Wide Input
- DKMW40: 2:1 Wide Input
Ideal for unstable DC sources and mobile equipment.
- Reinforced Isolation
1.5–3kV isolation for safe operation in sensitive circuitry.
- Compact, Light & Easy to Install
Perfect for slim industrial control panels and space-restricted enclosures.
- Full Protections Built-In
- Overload
- Overvoltage
- Short Circuit
- Overtemperature
- High Reliability with Global Certifications
Built to suit harsh industrial environments with long service life.
Technical Details
- Output Power:40W
- Input Voltage Options:
- SKMW40 Series: 9–36V / 18–75V (4:1)
- DKMW40 Series: 9–18V / 18–36V / 36–75V (2:1)
- Output Voltages Available:3V / 5V / 12V / 15V / ±12V / ±15V / 24V
- Isolation Voltage:1500–3000VDC
- Protection Level:Continuous short-circuit & automatic recovery
- Operating Temperature:–40°C to +85°C
- Efficiency:Up to 90%
A full technical chart can be provided on request by SCB Industries.
Where We Can Use This Product?
The Mean Well DC-DC Converters SKMW40/DKMW40 Series are ideal for:
- Industrial automation
- Railway & transportation systems
- IoT & smart devices
- Telecom & network equipment
- Robotics & CNC controllers
- Security & surveillance systems
- Battery-powered instruments
- Renewable energy systems
Applications of Mean Well DC-DC Converters SKMW40/DKMW40 Series
These converters are widely used in:
- Control Panels
- PLC, HMI & SCADA Systems
- Communication Base Stations
- EV Charging Systems
- Solar Power Conditioning Units
- Marine & Defense Electronics
Industries across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi rely heavily on these converters for stable, safe, and uninterrupted DC power.
What Customers in Eastern India Say About Our Product
Customers across Kolkata, Odisha, Gujarat, Pune, and Assam consistently choose SCB Industries because:
- “We always receive genuine Mean Well DC-DC Converters SKMW40/DKMW40 Series with proper certification.”
- “Their technical guidance helped us select the perfect model for our automation panel.”
- “Fast delivery and professional service—SCB Industries is our trusted Mean Well supplier.”
Success Stories of SKMW40/DKMW40
A major automation company upgraded their PLC control units using Mean Well SKMW40 Series supplied by SCB Industries, resulting in 15% improved system stability.
- Ø Gujarat – Solar Energy Integrator
A renewable energy company used DKMW40 Series for their battery-based solar applications, achieving zero power failure incidents over six months.
- Ø Odisha – Industrial Crane Manufacturer
Their control modules required rugged DC conversion. SCB Industries provided Mean Well SKMW40 units that performed flawlessly in high-temperature environments.
