J-50H/T Supplier
Features
- Encoder designed for Induction motor feedback applications
- Through and blind bore upto 16mm
- Robust design less than 52 mm diameter size with gland and dicast covers
- Shatter proof polycarbonate disk
- Designed with many options including various types of connectors and mounting flex
- Collet clamp for fixing motor shaft
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage
- Output stage with long distance cable driving capability
Channels:
R = ABZ
Q = AB
A =A
Output:
HV = 15mA source /sink up to 100°C without inverted channels
HVLD = 15mA source /sink up to 100°C with inverted channels
PP = 20mA source/sink up to 100°C without inverted channel
PPLD / HTL = 20mA source/sink up to 100°C with inverted channel
OC = 20mA sink type (NPN) without inverted channel
TTL / RS422 = 15mA source/sink up to 70°C with inverted channel at 5VDC
PPR:
100**,250**,256**,300,360,500,512,600,625,720,1000,1024,1200,1250,1440,1800,2000,2048,
2500,3000*,3600*,4000*,4096*,5000*,6000*,7200*,8000*,8192*,10000*
**These PPR are available upto 10mm bore
*These PPR available in Temperature option -10° to70 C°
Voltage:
V3 = 5 to 26 VDC
For TTL Output
5 Volt only
Shaft Size:
06 = 06mm
6.35 = 6.35mm
08 = 08mm
9.52 = 9.52mm
10 = 10mm
12 = 12mm
14 = 14mm
15 = 15mm
16 = 16mm
Mounting Options

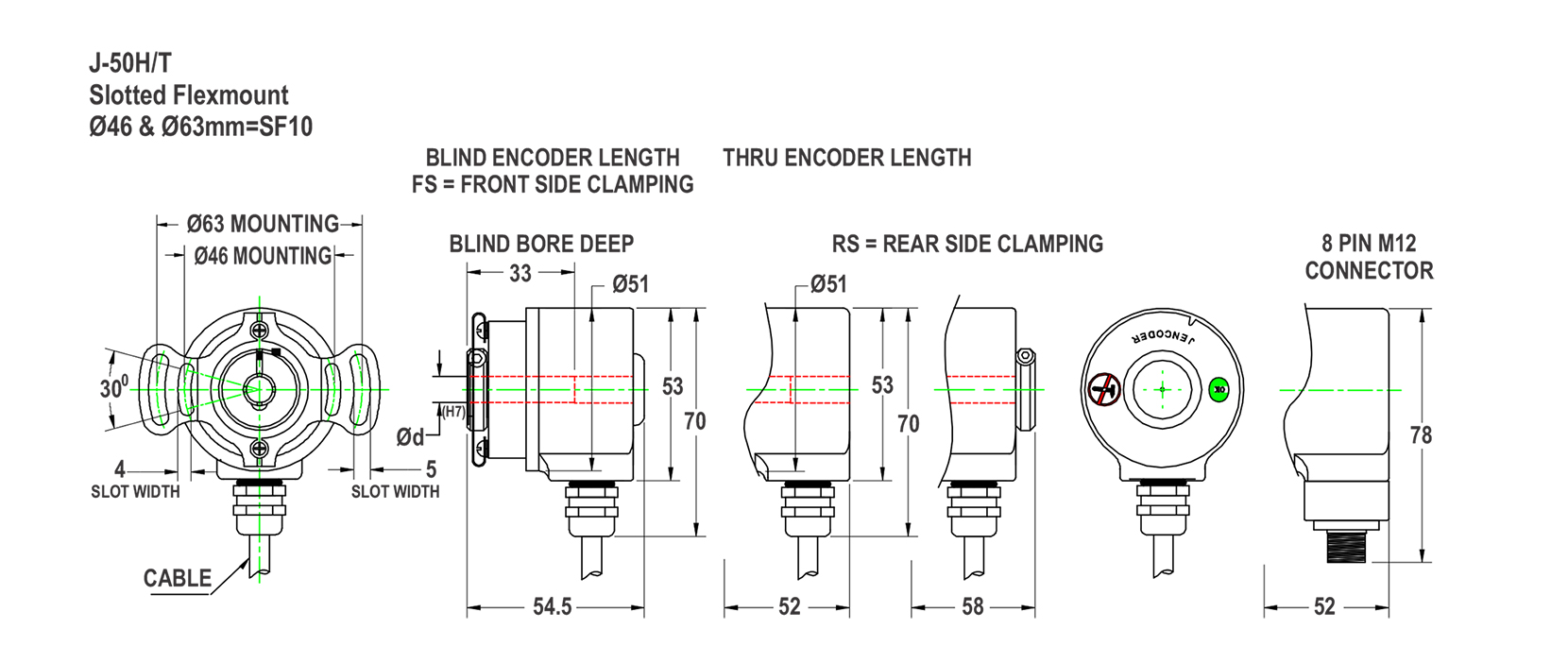

SF10 = Double Side Slotted Flex mount 46mm and 63mm

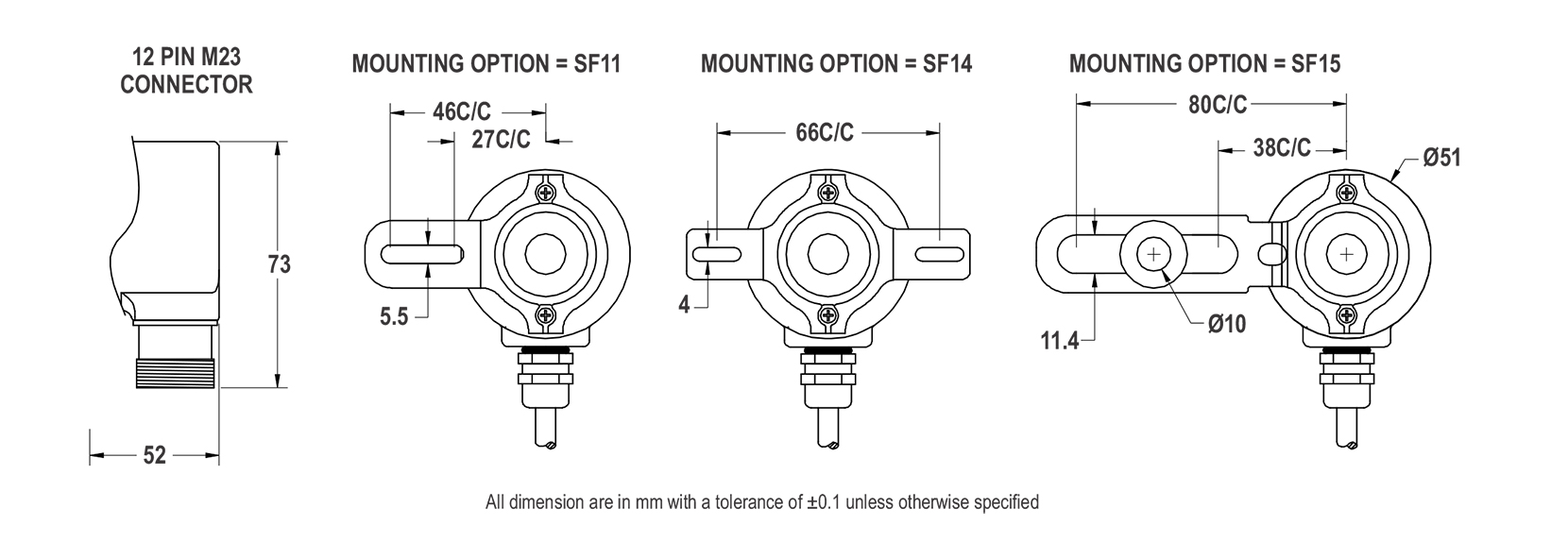

SF11 = Single Side Slotted Flex mount 27mm to 46mm
SF14 = Double Side Slotted Flex mount 66mm
SF15 = Single Side Slotted Flex mount 38mm to 79mm
Clamping Style
FS = Front Side
RS = Rear Side
Protection
1 = IP50
2 = IP65 (available only up to 70° C temperature option)
Temperature
S = -10 to 70° C
H = -20 to 100° C
Cable Outlet
SG = Side Gland,
S8 = 8 Pin Side M12 Connector
S12 = 12 Pin Side M23 Connector
CE Certified
N = Standard
CE = CE Certified
Z GATING
A (Standard) = Quadrature A & B with 180° index gated to A
AB = Quadrature A & B with 90° index gated to A and B
N = Ungated
Cable Length
1m
2m
5m
Ordering Example – J-50T-R-HVLD-1000-V3-10-SF10-FS-1-S-SG-N-A-2m
Model J-50H/T PPR Options
100**,250**,256**,300,360,500,512,600,625,720,1000,1024,1200,1250,1440,1800,2000,2048,2500,3000*,3600*,4000*,4096*,5000*,6000*,7200*,8000*,8192*,10000*
Introduction to Our Product
SCB Industries is a leading Hollow Jencoder J-50H/T Supplier, delivering precision-engineered hollow shaft encoders to industries across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi.
The J-50H/T Hollow Jencoder is specially designed for applications requiring easy installation, superior alignment flexibility, and accurate rotational feedback. Its hollow shaft design allows direct mounting on motor shafts or machine spindles, reducing the need for couplings and lowering maintenance costs. Built for reliability, stability, and long-term operation, the J-50H/T is a preferred choice for automation and motion control systems globally.
Key Features of Hollow Jencoder J-50H/T
- Precision Hollow Shaft Designfor direct mounting without mechanical couplers
- Compact & Easy-to-Install Constructionsuitable for space-limited assemblies
- High-Resolution Outputfor accurate speed and position feedback
- Rugged Industrial Buildresistant to vibration, dust, and environmental stress
- Long-Life Bearingsensuring reliable performance over extended duty cycles
- Stable Signal Transmissioncompatible with PLCs, VFDs, drives, and automation controllers
- Wide Operating Temperature Rangefor diverse environments
- Low Maintenance Requirementdue to optimized shaft alignment
Top Benefits of Choosing SCB Industries
We focus on providing encoders engineered for long-term, stable, and accurate performance. Partnering with SCB Industries for your Hollow Jencoder J-50H/T ensures:
- Authentic, high-performance Jencoders with proven reliability
- Pan-India supply network with fast delivery
- Competitive pricing tailored for industries and OEMs
- Technical guidance for selection, installation, and troubleshooting
- Bulk order support and consistent stock availability
- Dedicated after-sales service
- Trusted by leading industrial sectors nationwide
Applications of Hollow Jencoder J-50H/T
Its hollow shaft configuration allows for direct integration, making it highly efficient and versatile. The J-50H/T Hollow Jencoder is widely used across various automation and motion control systems:
- Industrial automation & machinery
- Conveyor & packaging systems
- Servo motors & stepper motors
- Textile machinery
- Robotics & motion control
- CNC and precision equipment
- Elevators, hoists & material handling systems
- Printing, labeling & converting machines
- Assembly lines & processing plants
Affordable Hollow Jencoder J-50H/T Without Compromising Quality
SCB Industries ensures that you get the best value for your investment.
We provide affordable Hollow Jencoder J-50H/T solutions without sacrificing durability, performance, or precision. Every unit is tested for quality, ensuring long-lasting reliability at a budget-friendly price.
Innovative and Durable J-50H/T: Setting Industry Standards
Its robust design and advanced sensing technology make it a benchmark encoder in the industry. The J-50H/T Hollow Jencoder is designed to outperform traditional encoders with:
- Innovative engineering
- Improved mechanical stability
- Reduced mounting complexity
- Enhanced alignment accuracy
- Increased operational efficiency
Order Your Hollow Jencoder J-50H/T Now and Save More
Contact SCB Industries today to order your Hollow Jencoder J-50H/T and enhance your machine performance with precision and reliability! Upgrade your automation systems with the high-performance J-50H/T Hollow Shaft Encoder from SCB Industries. We guarantee:
- Best market prices
- 100% genuine and durable encoders
- Fast nationwide delivery
- Expert support before and after purchase
