Hollow Jencoder J-80 Supplier
SCB Industries is a leading Hollow Jencoder J-80 Supplier, delivering robust and high-precision hollow shaft encoders to industries across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi.
The J-80 Hollow Jencoder is designed for heavy-duty applications where accuracy, long-term reliability, and mechanical strength are crucial. Its large hollow shaft allows direct mounting on thick motor shafts, eliminating couplings and ensuring perfect alignment. This significantly reduces maintenance and enhances operational efficiency. The J-80 model is ideal for industries requiring stable performance under high torque, vibration, and continuous duty cycles.
Features
- One of the most compact encoder design for direct mounting behind an induction motor – Elevator Application
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage
- Output stage with long distance cable driving capability
Channels:
R = ABZ
Q = AB
A =A
Output:
HV = 15mA source /sink up to 100°C without inverted channels
HVLD = 15mA source /sink up to 100°C with inverted channels
PP = 20mA source/sink up to 100°C without inverted channel
PPLD / HTL = 20mA source/sink up to 100°C with inverted channel
TTL / RS422 = 15mA source/sink up to 70°C with inverted channel at 5VDC
PPR:
1024, 2048, 4096
Voltage:
V1 = 5 VDC
V2 = 10 to 26VDC
V3 = 5 to 26 VDC
For TTL Output 5 Volt only

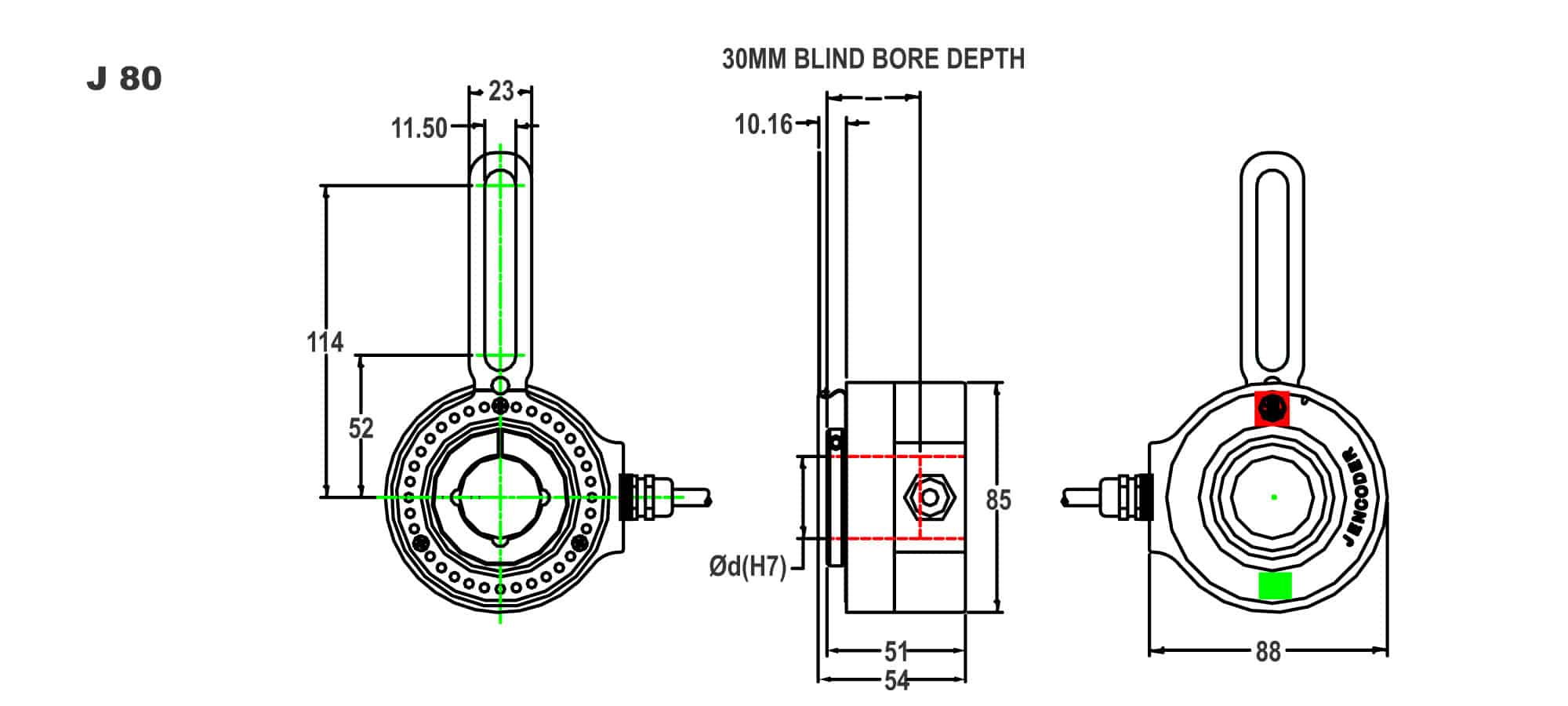

Shaft Size:
19 = 19mm
20 = 20mm
25.4 = 25.4mm
30 = 30mm
38 = 38mm
40 = 40mm
42 = 42mm
Bore Style:
T = Through Hollow Shaft
B = Blind Hollow Shaft
Clamping Style:
FS = Front Side
RS = Rear Side
Temperature
S = -10 to 70°C
H = -20 to 100°C
Protection:
1 = IP50
2 = IP65 (available only up to 70°C temperature option)

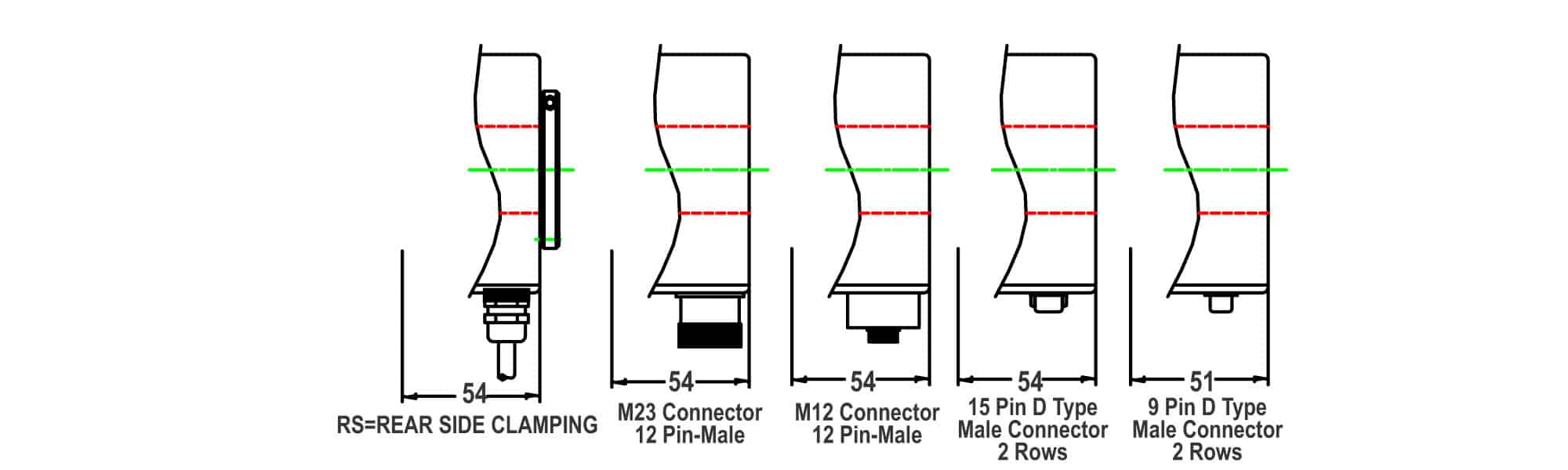

Connection Location:
SG = Side Gland,
S8 = 8 Pin Side M12 Connector
S12 = 12 Pin Side M23 Connector
S9 = 9 Pin Side D Type Connector
S15 = 15 Pin Side D Type Connector
CE Certified:
N = Standard
CE = CE Certified
Cable Length
1m
2m
5m
Z GATING:
A (Standard) = Quadrature A & B with 180° index gated to A
AB = Quadrature A & B with 90° index gated to A and B
N = Ungated
Ordering Example – J-80-R-HVLD-1024-V3-30-T-FS-1-S-SG-N-1m-A
Key Features of Hollow Jencoder J-80
- Large Hollow Shaft Designfor direct mounting on heavy-duty motor shafts
- High Mechanical Strengthsuitable for demanding industrial operations
- High-Resolution Feedback Outputensuring precise speed and position detection
- Heavy-Duty Industrial Housingresistant to shock, dust, vibration, and harsh environments
- Long-Life Precision Bearingsfor smooth rotation and extended operational life
- Reliable Compatibilitywith PLCs, automation controllers, VFDs, and servo drives
- Low Maintenancedue to minimal mechanical components
- Stable Performanceeven under high-speed and high-load applications
Top Benefits of Choosing SCB Industries
We focus on delivering high-quality, long-lasting products that help industries improve efficiency and reduce downtime. Working with SCB Industries for the J-80 Hollow Jencoder gives you unmatched advantages:
- Genuine, industry-certified J-80 encoders
- Pan-India supply with prompt delivery
- Competitive pricing with excellent value
- Expert technical support for selection & integration
- Reliable stock availability for urgent demands
- Strong after-sales service
- Trusted by OEMs, system integrators & industrial users
Applications of Hollow Jencoder J-80
Its rugged construction and high-accuracy output make it a reliable choice for intense industrial operations. The J-80 Hollow Jencoder is ideal for:
- Heavy-duty industrial motors
- Conveyor systems in mining, steel, and cement
- Elevators, hoists & lifting machinery
- High-capacity material handling equipment
- Robotics & automation systems
- Precision drive control in large machinery
- Printing & packaging equipment
- Textile and paper processing machines
- Marine & offshore machinery
Affordable Hollow Jencoder J-80 Without Compromising Quality
SCB Industries ensures you get the best pricing for the high-performance J-80 Hollow Jencoder without sacrificing product quality or reliability.
Every encoder is tested to deliver premium performance, durability, and stable operation—making it a cost-effective solution for both small and large-scale industries.
Innovative and Durable J-80: Setting Industry Standards
Its innovative design makes it one of the most preferred heavy-duty hollow shaft encoders in the automation world. The J-80 Hollow Jencoder leads the market with:
- Advanced engineering
- Superior mechanical stability
- High-resolution signal accuracy
- Capability to withstand heavy loads and rough conditions
- Highly durable industrial build
Order Your Hollow Jencoder J-80 Now and Save More
Upgrade your motion control system with the powerful J-80 Hollow Shaft Encoder from SCB Industries. We guarantee:
- Best-in-market prices
- Authentic and long-lasting products
- Fast and safe delivery
- Complete technical assistance
