Solid Jencoder J-58B Supplier
SCB Industries is a trusted Solid Jencoder J-58B Supplier, offering premium-quality industrial encoders across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi.
The J-58B Solid Jencoder is engineered for heavy-duty applications that require superior precision, strong mechanical stability, and long operational life. With its robust construction and high-performance signal output, the J-58B is ideal for industries demanding accuracy under tough working conditions.
Features
- Encoder designed for machine tool spindle applications

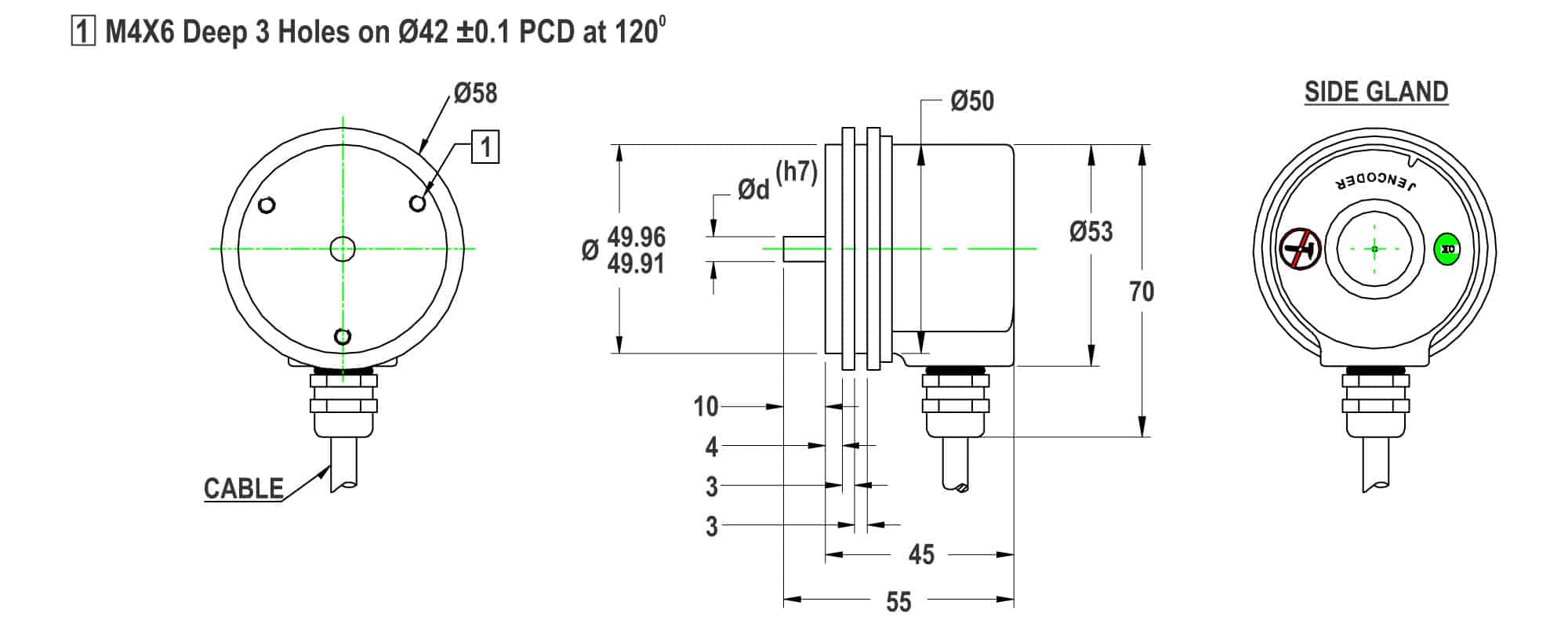

- Robust design with 58mm diameter with dicast covers and many termination options
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage
- Output stage with long distance cable driving capability
Channels:
R = ABZ / Q = AB / A = A
Output:
HV = 15mA source /sink up to 100°C without inverted channels
HVLD = 15mA source /sink up to 100°C with inverted channels
PP = 20mA source/sink up to 100°C without inverted channel
PPLD / HTL = 20mA source/sink up to 100°C with inverted channel
OC = 20mA sink type (NPN) without inverted channel
TTL / RS422 = 15mA source/sink up to 70°C with inverted channel at 5VDC
PPR:
see PPR option below
Voltage:
V3 = 5 to 26 VDC
For TTL Output 5 Volt only
Shaft Size:
6 = 6 mm
8 = 8 mm
10 = 10mm
Protection:
1 = IP50
2 = IP65 (available only up to 70°C temperature option)
Temperature:
S = -10 to 70°C
H = -20 to 100°C

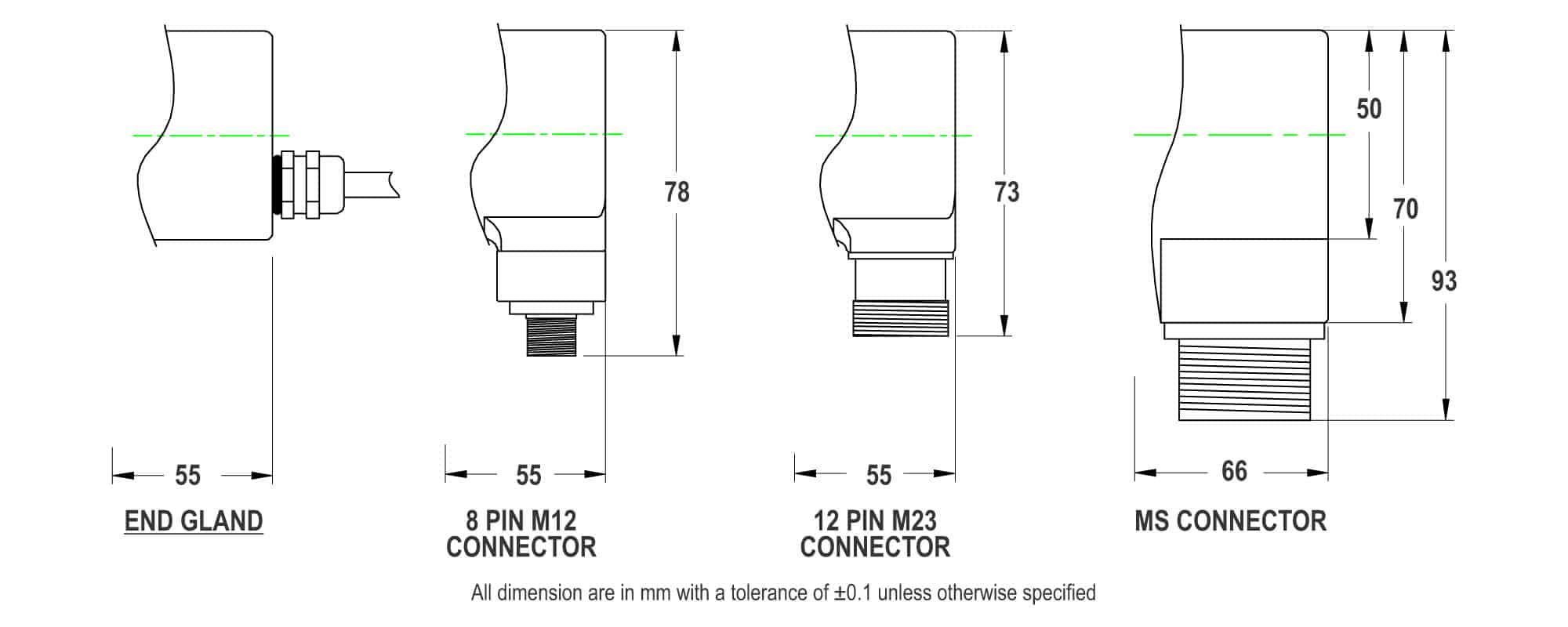

Connection Location:
SG = Side Gland,
EG = End Gland
S8 = 8 Pin Side M12 Connector
S6 = 6 Pin Side MS Connector
S7 = 7 Pin Side MS Connector
S12 = 12 Pin Side M23 Connector
S10 = 10 Pin Side MS Connector
S17 = 17 Pin Side MS Connector
CE Certified:
N = Standard
CE = CE Certified
Ordering Example – J-58B-R-HVLD-1024-V3-6-1-S-SG-N-A-2m
Model J-260-58BN-SL PPR Options
100,250,256,300,360,500,512,600,625,720,1000,1024,1200,1250,1440,1800, 2000,2048,2500,3000*,3600*,4000*,4096*,5000*,6000*,7200*,8000*,8192*,10000*
*These PPR available in Temperature option -10°to70°C
Key Features of Solid Jencoder J-58B
- Rugged Solid Shaft Designensuring high mechanical strength and stable performance
- High Accuracy Signal Outputfor precise speed, angle, and position measurement
- Heavy-Duty Body Constructionbuilt to withstand vibration, load, dust, and industrial stresses
- Smooth Rotation & Low Friction Bearingsfor long service life
- Reliable Output Compatiblewith PLCs, VFDs, drives, and automation controllers
- Wide Operating Temperature Rangesuitable for harsh environments
- Strong Electrical Protectionminimizing interference and ensuring stable communication
- Easy to Installin conveyors, motors, and automated systems
Top Benefits of Choosing SCB Industries
Our focus is on delivering reliable products that enhance machine performance and reduce downtime. SCB Industries offers unmatched advantages when choosing the J-58B Solid Jencoder:
- High stock availabilityfor urgent requirements
- Authentic, industry-standard J-58B encoders
- Competitive pricing across all regions
- Technical guidance for installation and application
- Reliable delivery across India
- Exceptional after-sales support
- Trusted supplier for OEMs, industries & system integrators
Applications of Solid Jencoder J-58B
Its durability and accuracy make it ideal for long-term industrial use. The J-58B model is designed for demanding industrial environments, making it suitable for:
- Heavy-duty conveyor systems
- Material handling and lifting equipment
- Industrial motors and drives
- Robotics & automated motion control
- CNC machines and precision equipment
- Printing, paper, and packaging machinery
- Foundry, mining, and steel plant automation
- Textile production lines
- Assembly and production machinery
Affordable Solid Jencoder J-58B Without Compromising Quality
At SCB Industries, you get affordable Solid Jencoder J-58B solutions that meet world-class performance standards. We believe in offering products that are not only cost-effective but also dependable, strong, and built to deliver consistent results.
Innovative and Durable J-58B: Setting Industry Standards
It sets industry benchmarks in performance, longevity, and reliability. The J-58B Solid Jencoder stands out in the market due to its:
- Advanced engineering
- Strong mechanical stability
- High-resolution signal output
- Durable build designed for continuous duty cycles
Order Your Solid Jencoder J-58B Now and Save More
Enhance your machinery with the dependable J-58B Solid Shaft Encoder from SCB Industries. We guarantee:
- Best-in-market pricing
- 100% genuine, high-quality products
- Fast delivery across all regions
