Capacitance Proximity Sensor Supplier
A Capacitance Proximity Sensor is a non-contact sensing device used to detect both metallic and non-metallic objects. Unlike inductive sensors, which only detect metals, capacitance proximity sensors can detect materials such as plastic, glass, wood, liquid, powder, and granular materials by measuring the change in capacitance caused by the target’s presence.
SCB Industries is a trusted Capacitance Proximity Sensor supplier in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi, offering high-quality sensors designed for reliable operation in industrial automation, material handling, packaging, and process control applications.
Our capacitance sensors are known for accuracy, stability, and long service life, making them ideal for detecting a wide variety of materials in challenging industrial environments.
Applications of Capacitive Proximity Sensors
Capacitive proximity sensors are versatile and can be used in a variety of applications, including:
- Level Detection: Ideal for detecting the presence of liquids in tanks and containers.
- Material Handling: Useful for detecting non-metallic materials on conveyors or in storage areas.
- Packaging Industry: Perfect for ensuring the correct placement of materials during the packaging process.
- Automation: Widely used in automated systems for detecting and counting objects.
The measurement of the capacitive proximity switch like this is usually one pole plate that forms the capacitor, and the other pole plate is the housing of the switch. This housing is usually grounded or connected to the housing of the device during the measurement process.
When an object moves towards the proximity switch, regardless of whether It is a conductor or not, due to its proximity, the dielectric constant of the capacitance should always change, so that the capacitance changes and the state of the circuit connected to the measuring head also changes, so that the switch can be controlled on or off. This proximity switch detects objects that are not limited to conductors, liquids or powders that can be insulated, etc.
| CAPACITIANCE PROXIMITY SENSOR | STCM-12 | STCM-18 | STCM-30 | |||
| Detection Distance | 4mm | 8mm | 15mm | |||
| NON-FLUSH | 6-36VDC | PNP/NPN | NO+NC | STCM12-3004PC/NC | STCM118-3008PC/NC | STCM30-3015PC/NC |
| AC 90-250 VAC | SCR Control-label silicon | NO | STCM12-2004A | STCM18-2008A | STCM30-2015A | |
| NC | STCM12-2004B | STCM18-2008B | STCM30-2015B | |||
| Detectable Object | Conductor and dielectric body | |||||
| Output Voltage Drop DC/AC | DC<3V,AC<10V | |||||
| Consumption Current | DC<15mA, AC<10mA | |||||
| Output Current | DC: 200mA, AC: 200mA | |||||
| DC/AC Response Frequency | 50Hz/10Hz | |||||
| Working Environment Temperature | -25°C ~ +75°C | -25°C ~ +75°C | -25°C ~ +65°C | |||
| Insulation Resistance | >=50MΩ | >=50MΩ | >=50MΩ | |||
| Shell Material | Metal | Metal | Metal | |||
| Protection Grade | IP54 | IP54 | IP54 | |||

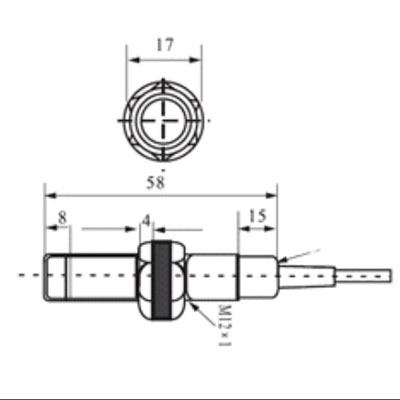

STCM – 12

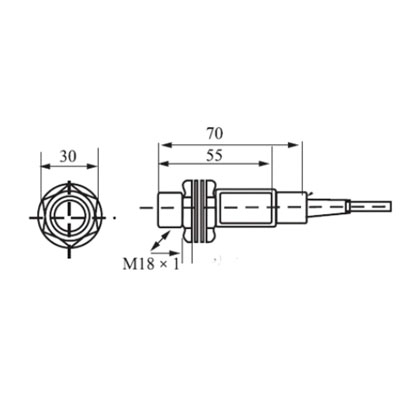

STCM – 18

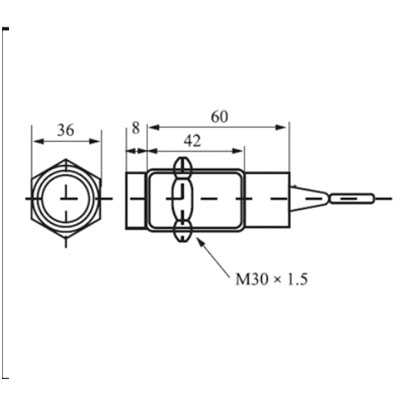

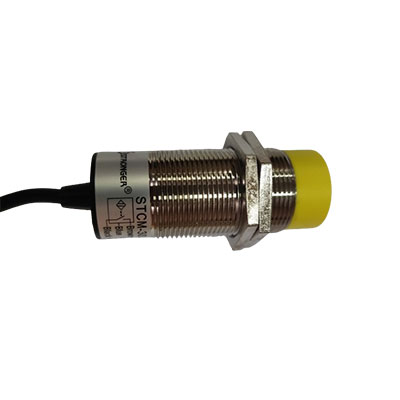

STCM-30
ST18
ST30
Benefits of Using Capacitive Proximity Sensors
- High Sensitivity: Detects even the smallest changes in material presence.
- Non-Contact Sensing: Ensures no wear and tear, leading to longer sensor life.
- Versatile Application: Suitable for a wide range of industrial environments.
- Custom Options: Available in various configurations to suit different applications.
Where Can You Use Capacitance Proximity Sensors?
Capacitance proximity sensors have versatile applications across multiple industries, including:
- Packaging Industry:Detecting plastic film, bottles, and packaging materials.
- Food & Beverage Industry:Level detection in containers, silos, and tanks.
- Pharmaceutical Industry:Monitoring powders, granules, and liquid levels.
- Plastic & Rubber Industry:Detecting plastic pellets or resin in hoppers.
- Textile Industry:Yarn detection and fabric positioning.
- Automation & Robotics:Object detection and position sensing in automated systems.
- Agriculture & Chemical Plants:Measuring feed levels, grains, or chemical powders.
Key Benefits of SCB Industries’ Capacitance Proximity Sensors
- Detects metallic and non-metallic materials– versatile for multiple applications.
- Non-contact sensing– no mechanical wear, ensuring long operational life.
- High sensitivity and adjustable range– suitable for detecting liquids, powders, and solids.
- Reliable in dusty or humid environments– consistent performance in all conditions.
- Compact design– easy to install in confined machine spaces.
- Maintenance-free operation– reduces downtime and maintenance costs.
- Wide range of output options– available in PNP/NPN, NO/NC configurations.
Technical Details
| Parameter | Specification |
| Sensing Distance | 2 mm to 30 mm (adjustable) |
| Target Material | Metal, Plastic, Glass, Liquid, Wood, Granules |
| Output Type | PNP / NPN, NO / NC |
| Operating Voltage | 10V to 30V DC or 90V to 250V AC |
| Operating Temperature Range | -25°C to +70°C |
| Frequency Response | Up to 100 Hz |
| Protection Structure | IP65 / IP67 |
| Housing Material | Plastic / Nickel-Plated Brass / Stainless Steel |
| Mounting Type | Flush / Non-Flush |
| Connection Type | Cable Type / Connector Type |
Why Choose SCB Industries?
At SCB Industries, we specialize in supplying high-quality Capacitance Proximity Sensors that meet industrial standards for precision and durability. Our sensors are sourced from reputed manufacturers and tested for accuracy, sensitivity, and long-term reliability. With a strong distribution network in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi, we ensure timely delivery, competitive pricing, and excellent technical support to our clients.
Whether you require capacitance sensors for level detection, object sensing, or automation systems, SCB Industries provides the perfect solution tailored to your industrial needs.
Guaranteed Satisfaction: Your Reliable Partner for Capacitance Proximity Sensors
SCB Industries stands as a reliable and trusted Capacitance Proximity Sensor supplier committed to delivering performance, durability, and precision in every sensor. Our goal is to help industries achieve seamless automation and operational efficiency through quality sensor solutions.
