Hollow Jencoder J-40H/T Supplier
SCB Industries is a trusted Hollow Jencoder J-40H/T Supplier offering high-quality, precision-engineered hollow shaft encoders to industries across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi. The J-40H/T Hollow Jencoder is a compact, efficient, and easy-to-install encoder designed for direct mounting onto motor shafts or rotating equipment.
Its hollow shaft design eliminates the need for couplers, reduces mechanical wear, and ensures smooth alignment—making it ideal for small to medium-sized automation systems. Engineered for accuracy, durability, and long operation life, the J-40H/T delivers reliable feedback signals for modern industrial applications.
Features
- Compact size encoder specifically designed for narrow space installation
- Through and blind bore upto 8mm
- Robust design for 40mm size with gland and dicast covers
- Shatter proof polycarbonate disk
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage
Model:
40H = Hollow Blind shaft Encoder
40T = Hollow Thru shaft Encoder
Channels:
R = ABZ
Q = AB
A =A
Output:
HV = 15mA source /sink up to 100°C without inverted channels
HVLD = 15mA source /sink up to 100°C with inverted channels
OC = 20mA sink type (NPN) without inverted channel
TTL / RS422 = 15mA source/sink up to 70°C with inverted channel at 5VDC
- For OC output, the rise and fall time depends on cable capacitance, hence the frequency gets limited by cable distance.In general we recommend to use OC- output upto 10meter distance only.
- OC output is limited upto 50Khz, all other output types can go upto 100Khz.
- HV & HVLD Output – Cable distance up to 30Mtr.
PPR:
100, 250, 256, 300, 360, 500, 512, 600, 625, 720, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 5000
Voltage:
V3 = 5 to 26 VDC
For TTL Output 5 Volt only
Shaft Size:
6 = 6 mm
6.35 = 6.35 mm
8 = 8mm
Mounting Options:
SF6 = Double SideSlotted
Flex mount 46mm
Protection:
1 = IP50
2 = IP54 (available only up to 70°C temperature option)
Temperature
S = -10 to 70°C
H = -20 to 100°C
Cable Outlet
SG= Side Gland
CE Certified
N = Standard
CE = CE Certified

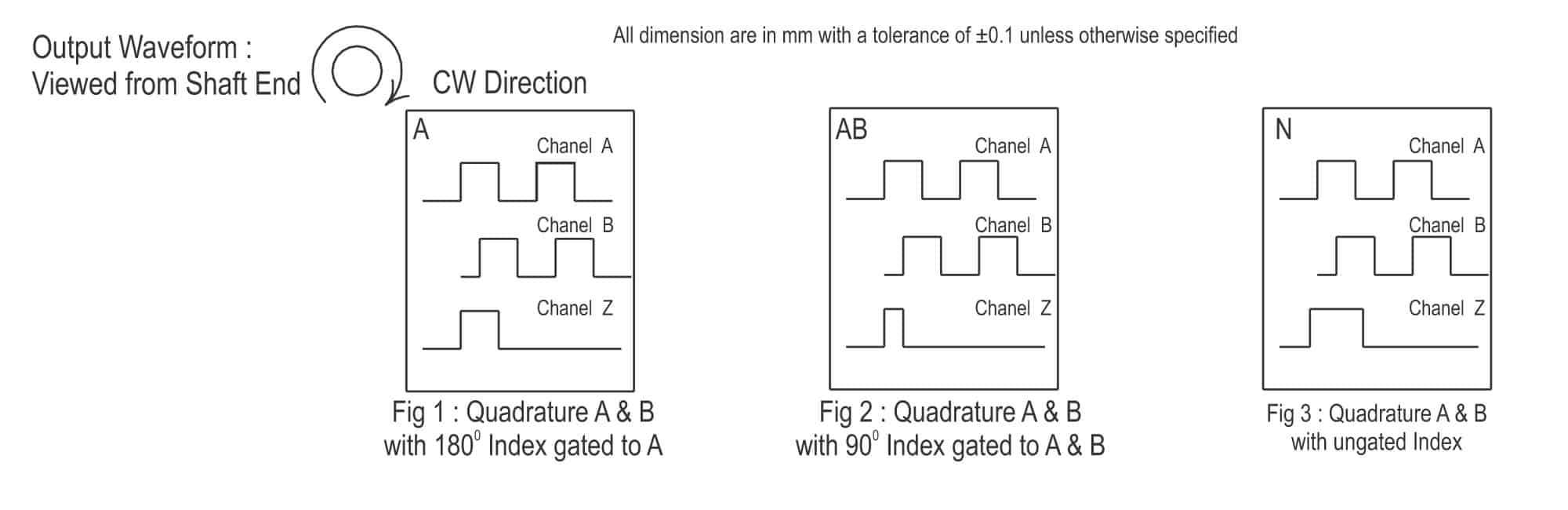

Z GATING
A (Standard) = Quadrature A & B with 180° index gated to A
AB = Quadrature A & B with 90° index gated to A and B
N = Ungated
Cable Length
1m
2m
5m
Ordering Example – J-40H-R-HVLD-1000-V3-6-SF6-1-S-SG-N-A-2m
Model J-15H-SL / J-15T-SL PPR Options
100, 250, 256, 300, 360, 500, 512, 600, 625, 720, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 5000
Key Features of Hollow Jencoder J-40H/T
- Compact Hollow Shaft Design that saves space and ensures easy installation
- High-Accuracy Signal Output for precise speed, angle, and motion feedback
- Lightweight Yet Durable Body suited for various industrial environments
- Low Maintenance Requirements due to minimal mechanical components
- Smooth Rotation with Reliable Bearingsdesigned for long service life
- Excellent Shock & Vibration Resistancefor stable operation
- Wide Compatibility with PLCs, VFDs, drivers, and automation controllers
- Direct Shaft Mountingreduces installation time and improves machine alignment
Top Benefits of Choosing SCB Industries
We prioritize performance, reliability, and prompt service for all customers. When you choose SCB Industries for the J-40H/T Hollow Jencoder, you get:
- Assured quality with genuine, industry-standard encoders
- Pan-India delivery with quick fulfilment
- Affordable pricing suitable for OEMs and industries
- Expert advice for product selection & installation
- Reliable stock availability for urgent projects
- Dedicated customer and technical support
Applications of Hollow Jencoder J-40H/T
Its compact design and hollow shaft configuration make it perfect for installations where space and alignment precision matter. The J-40H/T model is widely used in:
- Industrial automation systems
- Small and medium motor assemblies
- Conveyor & packing machinery
- Robotics and automated motion control
- Textile and printing machines
- CNC machinery and positioning systems
- Material handling equipment
- Labeling, processing & assembly lines
Affordable Hollow Jencoder J-40H/T Without Compromising Quality
At SCB Industries, you get the J-40H/T Hollow Shaft Encoder at highly competitive prices—without losing out on performance, durability, or operational reliability. Each encoder is tested for accuracy and long-term stability, ensuring exceptional value for your investment.
Innovative and Durable J-40H/T: Setting Industry Standards
Its innovative hollow shaft architecture makes it a preferred choice across multiple industries. The J-40H/T Hollow Jencoder sets new standards through:
- Advanced engineering technology
- Enhanced signal precision
- Superior durability in continuous-use environments
- Reduced mechanical stress due to direct mounting
- Highly efficient performance even in compact systems
Order Your Hollow Jencoder J-40H/T Now and Save More
Enhance your automation and machine control with the dependable J-40H/T Hollow Shaft Encoder from SCB Industries. We promise:
- Best pricing
- Fast and secure delivery across India
- 100% authentic and durable encoders
- Expert pre- and post-sales support
