Solid Jencoder J-40S Supplier
SCB Industries is a leading Solid Jencoder J-40S Supplier serving industries across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi. The J-40S Solid Jencoder is a compact, high-accuracy rotary encoder designed to deliver reliable position and speed feedback for industrial automation systems.
Built with a rugged solid shaft design and precision engineering, the J-40S is ideal for machines requiring stable mechanical coupling, long service life, and accurate motion control.
Features
- Compact size encoder specifically designed for narrow space installation
- Shaft size upto 8mm available
- Robust design for 40mm size with gland and dicast covers
- Shatter proof polycarbonate disk
- Designed for applications requiring compact size
- LED power compensated for aging and temperature
- Robust ASIC based design
- Robust electrical design capable of taking surge across supply voltage

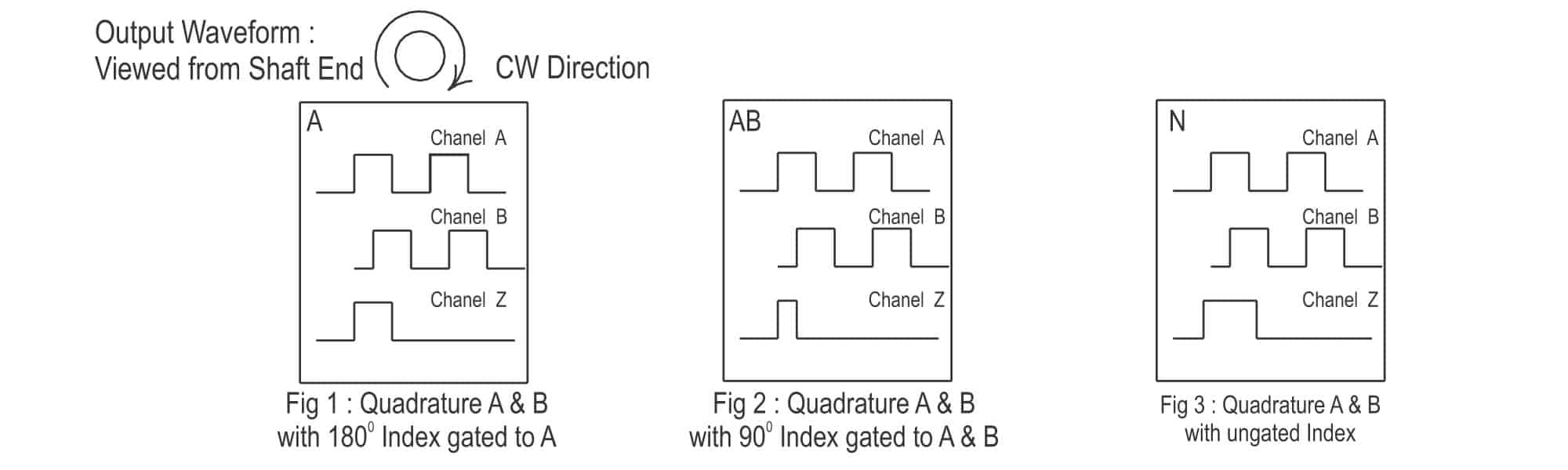

Channels:
R = ABZ / Q = AB / A = A
Output:
HV = 15mA source /sink up to 100°C without inverted channels
HVLD = 15mA source /sink up to 100°C with inverted channels
OC = 20mA sink type (NPN) without inverted channel
TTL / RS422 = 15mA source/sink up to 70°C with inverted channel at 5VDC
- For OC output, the rise and fall time depends on cable capacitance, hence the frequency gets limited by cable distance.In general we recommend to use OC- output upto 10 meter distance only.
- OC output is limited upto 50Khz, all other output types can go upto 100Khz.
- HV & HVLD Output – Cable distance up to 30Mtr
PPR:
100, 250, 256, 300, 360, 500, 512, 600, 625, 720, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 5000
Voltage:
V3 = 5 to 26 VDC For TTL Output 5 Volt only
Shaft Size:
6 = 6mm
8 = 8mm
6.35 = 6.35mm

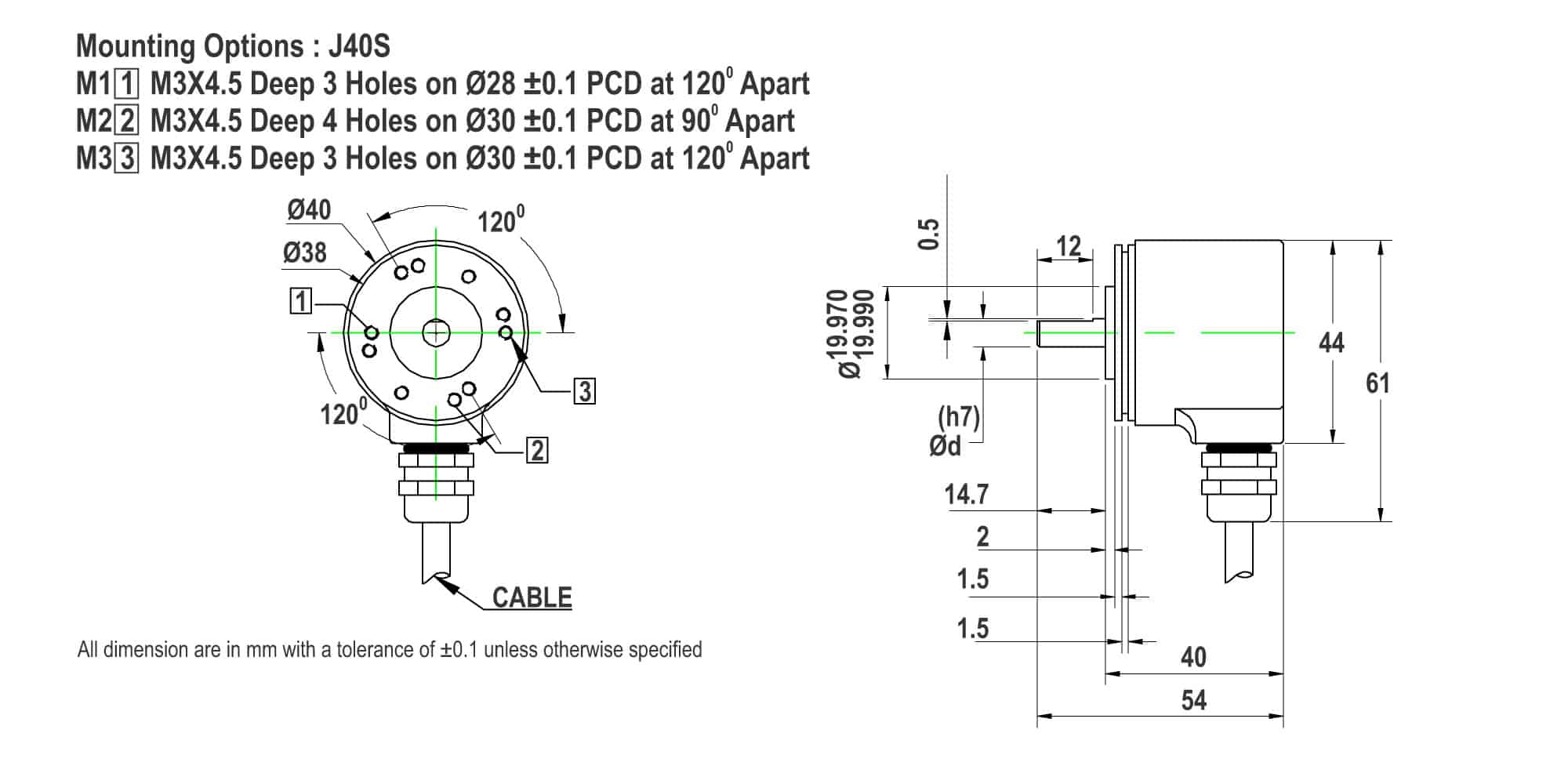

Mounting Options:
M1 = SERVO MOUNT
M3x4.5 mm Deep 3 holes on ø 28.0 ± 0.1PCD at 1200 apart
M2 = SERVO MOUNT
M3x4.5 mm Deep 4 holes on ø 30.0 ± 0.1PCD at 900 apart
M3 = SERVO MOUNT
M3x4.5 mm Deep 3 holes on ø 30.0 ± 0.1PCD at 1200 apart
Commutation Signals:
C4 = 4Pole C6 = 6Pole
C8 = 8Pole N= No Communication
Protection:
1 = IP50
2 = IP54
Temperature:
S = -10 to 70°C
H = -20 to 100°C
Cable Outlet:
SG = Side Gland
EG = End Gland
CE Certified:
N = Standard / CE = CE Certified
Ordering Example – J-40S-R-HVLD-1000-V3-6-M1-1-S-SG-N-A-2m.
Model J-40S
100, 250, 256, 300, 360, 500, 512, 600, 625, 720, 1000, 1024, 1200, 1250, 1440, 2000, 2048, 2500, 5000
Key Features of Solid Jencoder J-40S
- Compact and Space-Saving Designideal for small and medium-sized machinery
- High Precision Outputensuring accurate speed, angle, and position detection
- Durable Solid Shaft Constructionfor improved stability and mechanical strength
- Shock and Vibration Resistant Bodysuitable for challenging industrial environments
- Reliable Signal Transmissioncompatible with PLCs, controllers, drives, and automation panels
- Long-Life Bearingssupporting continuous operation with minimal maintenance
- Easy Installationin both new machinery and retrofit projects
Top Benefits of Choosing SCB Industries
SCB Industries ensures reliable, long-term solutions for all automation and motion control needs.
- Trusted and Experienced Supplierof Jencoders across multiple industrial hubs
- Genuine and Industry-Certified J-40S Encoders
- Competitive Pricing and Fast Dispatch
- Technical Assistance for Product Selection & Integration
- High Stock Availabilityfor urgent and bulk requirements
- Customer-Focused After-Sales Support
Applications of Solid Jencoder J-40S
Its compact size and high precision make it extremely versatile for multiple sectors. The J-40S Solid Jencoder is used across a wide variety of applications, including:
- Conveyor and packaging systems
- Industrial automation lines
- Printing and labeling machinery
- Motors and variable-speed drives
- Textile machines
- CNC and special-purpose machines
- Robotics and motion control systems
- Material handling and lifting equipment
- Assembly and production machinery
Affordable Solid Jencoder J-40S Without Compromising Quality
SCB Industries offers the Solid Jencoder J-40S at an affordable price while maintaining top-grade quality and performance. You get a reliable, durable, and efficient encoder designed to enhance your machine output—without exceeding your budget.
Innovative and Durable J-40S: Setting Industry Standards
It is engineered to deliver consistent accuracy and operational excellence for years. The J-40S Solid Jencoder sets a benchmark in the encoder industry with its:
- Precision-built components
- Long-lasting mechanical stability
- Innovative design for high-performance automation
- Exceptional reliability even under continuous loads
Order Your Solid Jencoder J-40S Now and Save More
Upgrade your automation efficiency with SCB Industries’ premium Solid Jencoder J-40S. We ensure:
- Best market prices
- Fast delivery
- 100% genuine product guarantee
- Expert technical support
