Plug-In Type Proximity Sensor Supplier
SCB Industries is a reliable Plug-In Type Proximity Sensor Supplier, delivering high-performance industrial sensors to clients across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi. Our plug-in type proximity sensors are designed for precise detection, durability, and consistent performance in demanding industrial and automation applications.
| PLUG IN TYPE PROXIMITY SENSOR | ST-LMT-8 | ST-LMT-12 | ST-LMT-18 | ST-LMT-30 | |||
| Detection distance | 1mm | 2mm | 5mm | 10mm | |||
| FLUSH | 6-36VDC | PNP/NPN | NO | ST8-3001PAT/NAT | ST12-3002PAT/NAT | ST18-3005PAT/NAT | ST30-3010PAT/NAT |
| PNP/NPN | NC | ST8-3001PBT/NBT | ST12-3002PBT/NBT | ST18-3005PBT/NBT | ST30-3010PBT/NBT | ||
| NO | ST12-2002AT | ST18-2005AT | ST30-2010AT | ||||
| NC | ST12-2002BT | ST18-2005BT | ST30-2010BT | ||||
| Relay Output | |||||||
| Detection Distance | 2mm | 4mm | 8mm | 15mm | |||
| NON-FLUSH | 6-36VDC | PNP/NPN | NO | ST8-3002PAT/NAT | ST12-3004PAT/NAT | ST18-3008PAT/NAT | ST30-3015PAT/NAT |
| PNP/NPN | NC | ST8-3002PBT/NBT | ST12-3004PBT/NBT | ST18-3008PBT/NBT | ST30-3015PBT/NBT | ||
| AC 90-250VAC | SCR Control-Label Silicon | NO | ST8-2002AT | ST12-2004AT | ST18-2008AT | ST30-2015AT | |
| NC | ST12-2004BT | ST18-2008BT | ST30-2015BT | ||||
| Relay Output | |||||||
| Control Output | DC | 150mA | 200mA | 200mA | 200mA | ||
| SCR/Relay | 150mA | 200mA | 300mA | 300mA | |||
| Output Voltage Drop DC/AC | DC<3V,AC<10V | ||||||
| Consumption Current | DC<15mA, AC<10mA | ||||||
| Standard Detected Object | 8×8×1 (A3iron) | 12×12×1 (A3iron) | 18×18×1 (A3iron) | 30×30×1 (A3iron) | |||
| Repeated Precision | 0.01 | 0.01 | 0.02 | 0.05 | |||
| DC/AC Response Frequency | 500Hz/10Hz | 400Hz/10Hz | 200Hz/10Hz | 200Hz/10Hz | |||
| Working Environment Temperature | -25°C ~ +75°C | -25°C ~ +75°C | -25°C ~ +75°C | -25°C ~ +65°C | |||
| Insulation Resistance | >=50MΩ | >=50MΩ | >=50MΩ | >=50MΩ | |||
| Shell material | Metal | Metal | Metal | Metal | |||
| Protection Grade | IP67 | IP67 | IP67 | IP67 | |||
STCM – 12

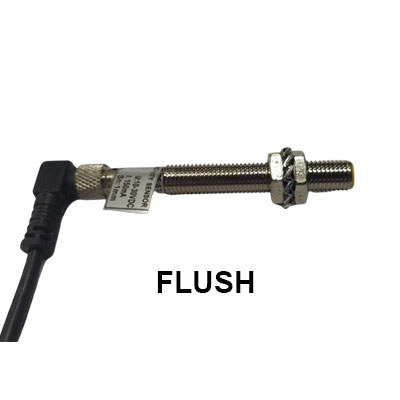

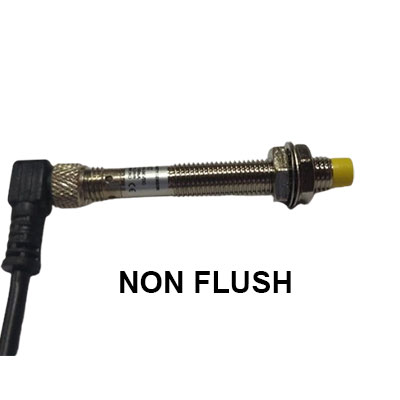

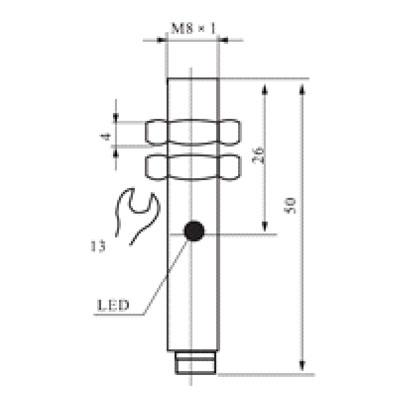

ST-LMT 8 FLUSH/NON-FLUSH

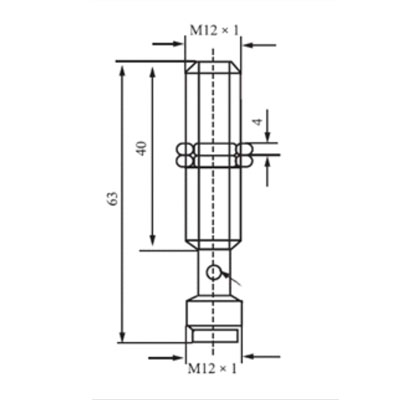

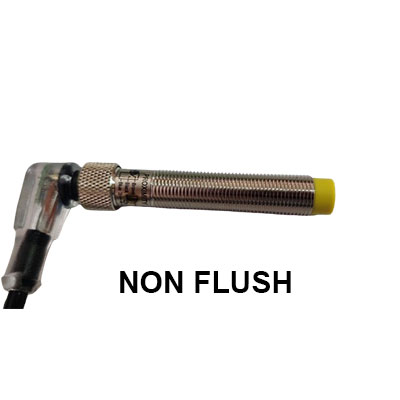

ST-LMT 12 FLUSH/NON-FLUSH

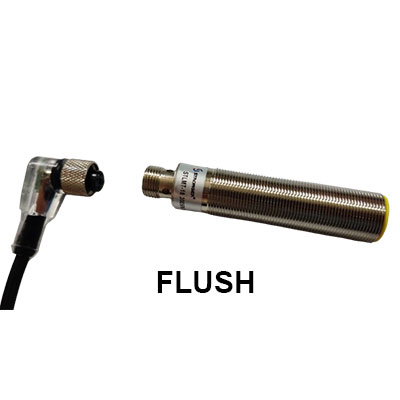

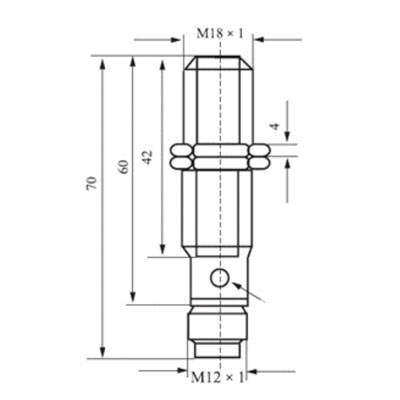

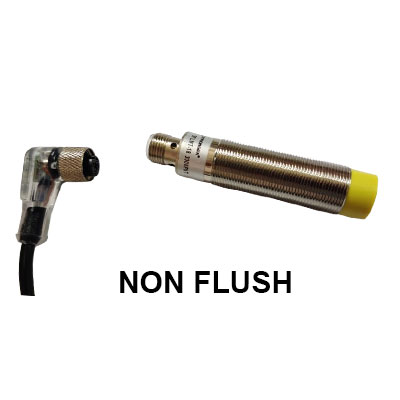

ST-LMT 18 FLUSH/NON-FLUSH

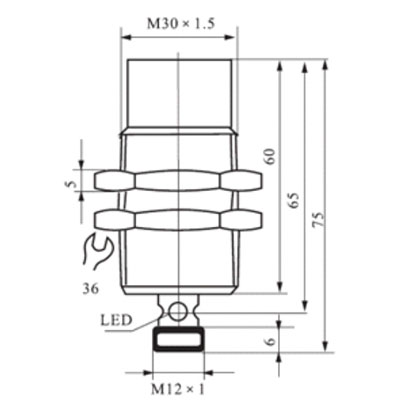

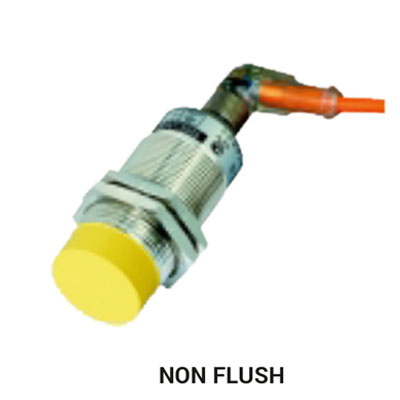

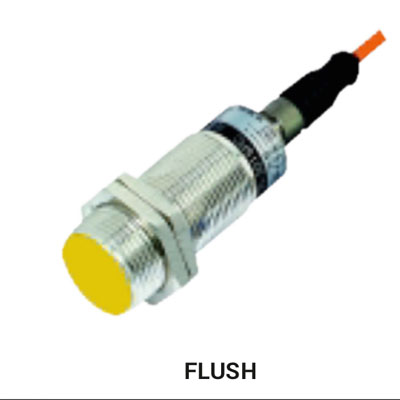

ST-LMT 30 FLUSH/NON FLUSH
About Plug-In Type Proximity Sensor
A Plug-In Type Proximity Sensor is a compact, easy-to-install sensor used for detecting the presence or absence of objects without physical contact. It operates based on electromagnetic fields and is designed to provide high precision and long service life in automation systems.
These sensors are available in Inductive, Capacitive, or Magnetic versions, depending on the application and target material. The plug-in design allows for quick replacement, easy maintenance, and reliable operation in harsh industrial environments.
SCB Industries supplies a complete range of Plug-In Type Proximity Sensors that ensure stable performance, high sensitivity, and consistent detection for both metallic and non-metallic targets.
Where Can We Use Plug-In Type Proximity Sensors?
Plug-In Type Proximity Sensors are widely used across multiple industrial sectors, including:
- Automation & Robotics:Position and object detection in assembly lines.
- Packaging Industry:Counting and alignment of products.
- Textile & Printing Machines:Thread, color, or mark detection.
- Material Handling Systems:Detecting presence on conveyors and trolleys.
- Food & Beverage Industry:Non-contact object detection for hygiene-sensitive operations.
- Automotive Industry:Used for end-position sensing, metal detection, and robotic control.
Benefits of Using Plug-In Type Proximity Sensors from SCB Industries
- Easy Installation: Plug-in design enables quick mounting and replacement.
- Compact & Space-Saving: Ideal for modern automation systems with limited space.
- Non-Contact Operation: Reduces wear, extending equipment life.
- High Switching Accuracy: Provides consistent detection even under vibrations.
- Maintenance-Free: No moving parts, ensuring long-term reliability.
- Wide Voltage Range: Compatible with standard DC supply voltages.
- High Protection Rating: Designed to withstand dust, oil, and moisture (IP65/IP67).
Technical Details of Plug-In Type Proximity Sensors
| Parameter | Specification |
| Sensing Type | Inductive / Capacitive / Magnetic |
| Sensing Distance | 2 mm to 30 mm (model dependent) |
| Output Type | NPN / PNP / Normally Open / Normally Closed |
| Operating Voltage | 10–30 V DC |
| Switching Frequency | 500 Hz – 2 kHz |
| Response Time | <1 ms |
| Operating Temperature | –25°C to +70°C |
| Protection Rating | IP65 / IP67 |
| Housing Material | Nickel-plated brass or stainless steel |
| Connection Type | Plug-in (M8 / M12 connector) |
Why Choose SCB Industries?
- Reliable Plug-In Type Proximity Sensor Supplier in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi
- Wide range of sensing solutions for automation and industrial machinery
- Durable, tested, and high-performance products
- On-time delivery and expert technical support
- Competitive pricing with assured quality and warranty
Trusted Partner for Industrial Sensors
At SCB Industries, we believe in delivering cutting-edge sensing technology to enhance automation efficiency. Our Plug-In Type Proximity Sensors are built to perform in demanding industrial conditions — ensuring accuracy, safety, and smooth operation across production lines.
If you’re looking for a dependable Plug-In Type Proximity Sensor Supplier, SCB Industries is your trusted source for quality, reliability, and professional service.
