Mean Well DC-DC Converters RSD-100 Series Supplier
The Mean Well RSD-100 Series offers 100W output, exceptional durability, wide input ranges, and advanced protection features—making it a top choice for railway electronics, industrial automation, communication systems, and battery-powered equipment. If you are searching for a trusted Mean Well DC-DC Converters RSD-100 Series Supplier in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi, SCB Industries is your one-stop destination. We supply high-efficiency, railway-grade DC-DC converters built for stable, reliable, and long-lasting power performance in demanding industrial environments.
Product summery of Mean Well RSD-100 Series
The RSD-100 Series from Mean Well is a robust and highly reliable DC-DC converter series designed specifically for harsh environments. Manufactured to comply with EN50155 railway standards, these converters guarantee stable performance despite continuous vibration, fluctuating input supply, dust, humidity, or extreme temperatures. They are built with reinforced isolation, low ripple noise, and superior energy efficiency, making them ideal for mission-critical electronics and industrial power systems.
Features
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 36mm
- All using 105℃ long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Benefits of Using Mean Well RSD-100 Series
- 100W High Power Output for demanding industrial and railway devices
- Wide Input Voltage Ranges, depending on model—perfect for unstable supply lines
- High Efficiency (up to 91%), ensuring lower heat and longer product life
- Reinforced 4KV Isolation for safety and reliability
- Low Ripple & Noise, ensuring stable operation of sensitive electronics
- Rugged Railway-Grade Design suitable for extreme conditions
- Built-in Protections: OVP, OCP, SCP, OTP
- Compact & Easy to Integrate into panel boards and control boxes
More Details About This Product
The RSD-100 Series is engineered with a metal case, integrated EMI filter, and high-quality components, ensuring long service life. Its wide input voltage options allow seamless operation in railway vehicles, EV systems, industrial factories, automation networks, and surveillance infrastructure. The converter maintains stable output at temperatures ranging from -40°C to +80°C, making it suitable for both indoor and outdoor industrial applications.
Technical Chart
Specification | Details |
Output Power | 100W |
Input Voltage Range | Varies by model (B/C/D) |
Output Voltage Options | 12V / 24V / 48V |
Isolation | Up to 4KV reinforced isolation |
Efficiency | Up to 91% |
Protection | OVP / OCP / SCP / OTP |
Cooling | Natural air cooling |
Operating Temp. | -40°C to +80°C |
Safety/Standard | EN50155, EN45545-2 |
Application Areas | Railway, industrial, automation, EV systems |
Types of RSD-100 Series (Supplied by SCB Industries)
We supply all three major variants:

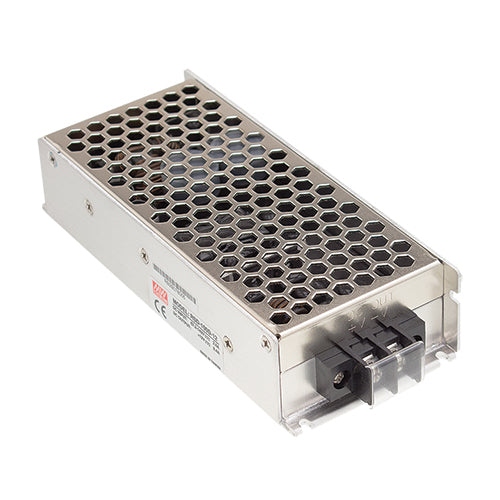

RSD-100B – Standard Wide Input Version
- Wide input voltage range suitable for general industrial and railway usage
- Perfect for control systems, automation panels, communication modules, and auxiliary circuits
- Balanced performance and cost-effective choice
- Stable output even under fluctuating DC supply conditions

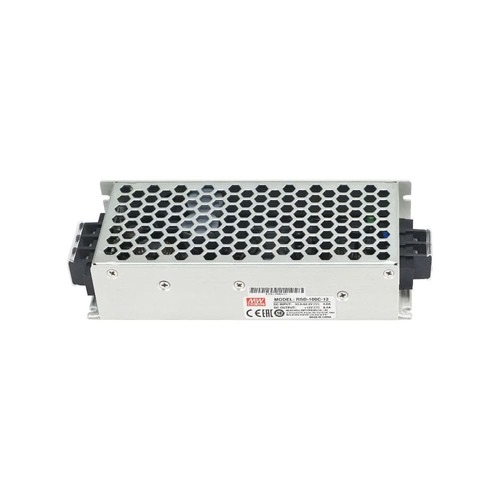

RSD-100C – Medium/Specific Input Voltage Version
- Designed for DC systems requiring specific mid-range voltage compatibility
- Ideal for advanced control units, vehicle power systems, and energy storage applications
- Offers high efficiency and low noise
- Suitable for electronics needing a precise and uninterrupted DC output
RSD-100D – High Input Voltage Version
- Built for high-voltage DC environments such as 72V/96V/110V railway networks
- Engineered for transportation electronics, rolling stock, EV controllers, and high-voltage DC bus systems
- Provides the highest isolation and rugged endurance
- Ensures long-term reliability in severe vibration & temperature conditions
Difference Between RSD-100B, RSD-100C & RSD-100D
Variant | Input Voltage Range | Best For | Key Advantage |
RSD-100B | Wide input | Industrial + railway general use | Most versatile & economical |
RSD-100C | Mid/specific input | Precision power systems | Optimized efficiency |
RSD-100D | High input | Railway HV systems | High isolation & rugged build |
Common Applications of RSD-100 Series
- Railway signaling and control electronics
- Industrial automation panels
- Electric vehicle systems
- DC power backup & battery charging systems
- Communication devices & network hardware
- Instrumentation & measurement equipment
- IoT and embedded system power supply
- Security and surveillance electronics
How We Ensure Customer Satisfaction – SCB Industries
At SCB Industries, we believe in offering trusted solutions backed by strong technical knowledge and uncompromising service.
Our customers choose us because:
- 100% Genuine Mean Well Products
- Technical Assistance for selecting the right model
- Pan-India Fast Supply including Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi
- Competitive Prices & Bulk Order Support
- Ready Stock Availabilityfor all RSD-100 variants
- Dedicated After-Sales Support for all industries
Affordable RSD-100 Series Without Compromising Quality
At SCB Industries, we ensure that businesses receive affordable Mean Well DC-DC Converters RSD-100 Series solutions without sacrificing product performance, safety, or reliability. Our strong distribution network and expertise allow us to provide premium-grade products at the best possible pricing.
