Mean Well DC-DC Converters RSD-30 Series Supplier
SCB Industries is a trusted Mean Well DC-DC Converters RSD-30 Series Supplier, delivering reliable and high-performance power solutions to industrial and automation sectors. We supply genuine Mean Well RSD-30 DC-DC converters across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi, ensuring quality products, competitive pricing, and prompt delivery.
Description
RSD-30 is a 30W enclosed type DC-DC reliable railway converter. This series is compliant with BS EN/EN50155/ IEC60571 railway standard, constituting three types of models with 4:1 wide but different input ranges 9~36V/18~72V/40~160V, suitable for railway and all kinds of transportation systems exploiting the frequently used standard input voltages such as 12V, 24V, 36V, 48V, 72V, 96V and 110V. Various output voltages, 3.3V, 5V, 12V and 24V are available for selection.
This series has the capability of working under -40~+70℃, low ripple and noise, supreme EMC characteristics, 4KVDC I/P-OP, low enclosure profile 25mm and an interior with semi-potted silicone. It does not only well fits the in-car systems or the facilities by rails for railway, trams and buses but also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.
Features
- Compliance to BS EN/EN50155 and BS EN/EN45545-2 railway standard
- Ultra compact and 1U low profile(25mm)
- 4:1 wide input range
- No minimum load required
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity
- 4000VDC I/O isolation (reinforced isolation)
- Half encapsulated , cooling by free air convection
- -40~+70℃ wide working temperature
- Built-in constant current limiting circuit
- LED indicator for power on
- 3 years warranty
Application
- Bus,tram,metro or railway system
- Wireless network
- Telecom or datacom system
- Highly vibrating, highly dusty, extremely
- low or high temperature harsh environment
Product introduction
The Mean Well RSD-30 series are reliable, compact 30 W DC-DC converters optimized for railway and transportation environments. Designed for rugged applications, these modules meet demanding standards like EN 50155 and EN 45545-2, making them ideal for use in trains, trams, metros, and other mobile systems. Their ultra-low 1U profile (just 25 mm height) ensures they fit comfortably into tight enclosures, while their wide input voltage capabilities and protective features guarantee dependable performance in challenging, vibration-prone environments.
Key benefits — what makes the RSD-30 series great
- Railway-grade reliability
Complies with railway standards EN50155and EN45545-2, ensuring safe operation under transport-system stresses. - Compact and space-efficient
With only 25 mm height (1U), it’s very compact for in-cabinet or on-board use. - Wide input range
The series includes models for 4:1 wide input ranges (e.g. 9–36 V, 18–72 V, 40–160 V), making it flexible for different vehicle supply systems. - Solid protection
Built-in protection against short circuit, overload, over-voltage, and input reverse polarity helps safeguard downstream equipment. - High isolation
Offers 4000 V DC I/O isolation, which helps in preventing noise coupling and ensures safe separation of input/output. - Robust thermal performance
Operates from –40 °C up to +70 °C, able to run in very harsh environmental conditions. - Easy integration
No minimum load required, convection-cooled (no fan), and LED power-on indicator simplify design and installation. - Warranty assurance
Backed by a 3-year manufacturer warranty.
More product details
- The RSD-30 series uses half-encapsulated construction,which helps with vibration resistance while keeping thermal performance good.
- It incorporates a constant-current limiting circuitto handle overloads gracefully.
- LED indicator helps to quickly verify “power on” status in the field.
- Cooling is done by free-air convection, so no moving parts or fans, reducing maintenance.
Technical chart
Here’s a summarized table of key specifications for the RSD-30 series, based on various models:
Parameter | Typical / Important Values |
Input voltage range | Depends on variant (G: 9–36 V, L: 18–72 V, H: 40–160 V) |
Rated output power | 30 W (some lower-power variants for 3.3 V) |
Output voltage options | 3.3 V, 5 V, 12 V, 24 V |
Output current (max) | – RSD-30G-3.3: up to 6 A |
Efficiency (typical) | Varies by model: e.g., RSD-30G-12 ~86.5%, RSD-30G-24 ~89% |
Ripple & Noise (max) | ~50–70 mVpp depending on model. |
Voltage regulation | ±2.0% tolerance on output; good line / load regulation. |
Isolation | 4000 V DC I/O (reinforced) |
Operating temperature | –40 °C to +70 °C (derating above ~55 °C) |
Protection | Short circuit, overload (constant current), over-voltage, reverse polarity. |
Dimensions | 113 mm × 60 mm × 25 mm (L × W × H) |
Isolation / Safety | Supports railway shock / vibration, EMC compliance. |
Variants of RSD-30 Series – Here are the main types SCB Industries offers, with example product variants:
RSD-30G – General-Purpose Wide Input Model
- Designed for general railway and industrial applications.
- Supports a wide DC input range(typically 9–36V or 18–75V depending on version).
- Provides stable isolated DC outputideal for control systems and auxiliary circuits.
- Offers 3000VAC isolation, built-in protections (OCP/OVP/OTP), and high durability.
- Best suited where wide voltage fluctuationsoccur (vehicles, automation panels, battery-operated systems).

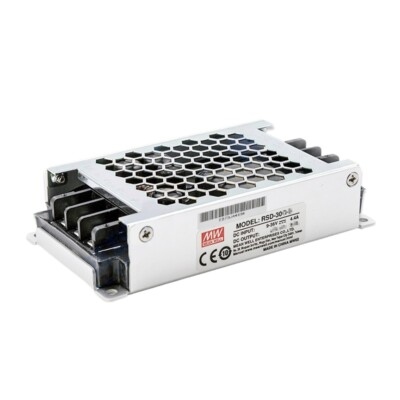

RSD-30L – Low Input Voltage Variant
- Built for low-voltage DC environments, usually with input ranges starting from 5V / 9V upward.
- Ideal for battery-driven devices, telecom equipment, and compact control modules.
- Delivers clean DC output even when input voltage drops or fluctuates heavily.
- Offers high efficiency and low ripple/noise performance.

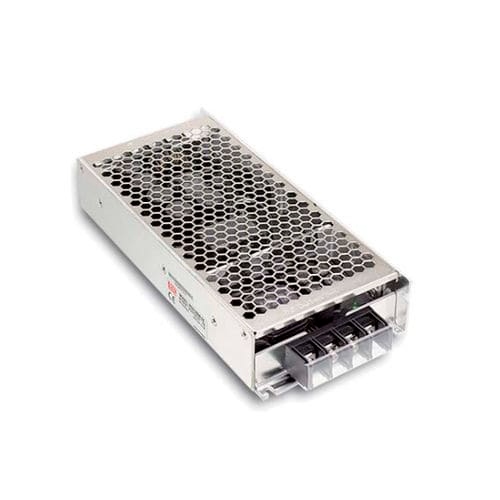

RSD-30H – High Input Voltage Variant
- Supports high DC input voltages, commonly 72V / 110V railway and industrial DC lines.
- Perfect for railway systems, electric vehicle control, transportation electronics, and high-voltage DC buses.
- Features reinforced 4KV isolation, long-life design, and high reliability under harsh conditions.
- Optimized for EN50155 railway standards.
Difference between variants:
- The G, L, and H suffixes denote different input voltage ranges:
- G: 9–36 V
- L: 18–72 V
- H: 40–160 V
- Output voltages differ among models (3.3 V, 5 V, 12 V, 24 V) — choose based on your application rail.
- Current capacity / power is appropriate to each output (e.g., 6 A on 5 V or 3.3 V, less on higher output voltages).
How SCB Industries Ensures Customer Satisfaction
- Genuine Parts & Traceability:We supply original Mean Well RSD-30 modules, backed by proper manufacturing documentation and datasheets.
- Technical Support:Our engineering team can assist you in choosing the right variant (G, L, H) and output voltage for your system’s input source and load.
- Local Stock & Fast Delivery:Serving Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi, SCB maintains regional inventory to reduce lead times.
- After-Sales & Warranty:We coordinate Mean Well’s 3-year warranty and handle any technical or replacement support, reducing downtime for your operations.
- Quality Assurance:All units are tested to ensure they meet Mean Well’s performance standards (isolation, ripple, temperature behavior) before shipping.
- Documentation & Compliance Support:We provide data-sheets, safety certificates, and rail-standard compliance documentation to help with design approvals and audits.
Affordable RSD-30 Solutions Without Compromising Quality
- Competitive Pricing:Through economies of scale and strong vendor relationships, SCB Industries offers the RSD-30 series at competitive rates, making high-reliability railway-grade converters accessible.
- Project-Based Discounts:For bulk orders (e.g., for train fleets, signalling installations or telecom in transport systems), we provide special pricing.
- Flexible Procurement:We support flexible order sizes – small quantities for prototyping and large volumes for deployment – to suit your budget.
- Value Engineering:By properly matching the RSD-30 variant to your input voltage (no over-spec’ing), we help you save on cost while ensuring reliability.
- Low TCO (Total Cost of Ownership):With long life, low maintenance (fanless, robust design), and warranty support, the operational cost over the lifetime is minimized.
Summary
- The Mean Well RSD-30 Seriesis a 30 W DC-DC converter family optimized for railway and transport applications, with rock-solid build, wide input options, and strong protection.
- SCB Industriesbrings these modules to customers in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune & Vapi, offering not just supply but engineering support, local stock, and after-sales service.
- Whether you need a low-voltage 3.3 V supply on a 12 V vehicle bus, or a 24 V rail from a 72 V system, we have the right RSD-30 variant — and provide it affordablywithout cutting corners.
