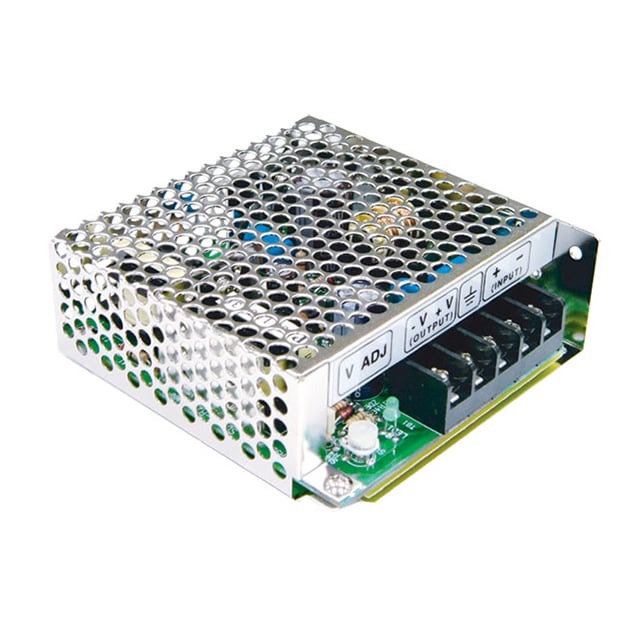

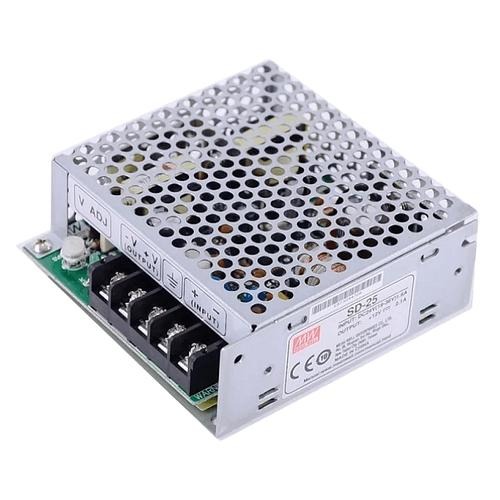

Mean Well DC-DC Converters SD-25 Series Supplier
SCB Industries is a leading Mean Well DC-DC Converters SD-25 Series Supplier serving Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi. The Mean Well SD-25 Series represents a durable and high-performance range of DC-DC converters designed for precision, efficiency, and stability in industrial, automation, and telecommunication systems.
Engineered with compact construction and advanced circuitry, the SD-25 Series ensures consistent DC power conversion even under fluctuating loads, making it ideal for mission-critical applications.
Core Specifications
- Model Series:SD-25
- Power Range:25W
- 2:1 wide input range
- Protections : Short Circuit / Over load / Over Voltge
- 1500 VAC I/O isolation
- Built-in EMI filter, low ripple noise
- 100% full load burn-in test
- Fixed switching frequency at 83 KHz
- Low cost
- High reliability
- 2 years warrenty
- Input Voltage Range:Wide input range depending on the model (9–18V, 18–36V, 36–72V)
- Output Voltage Options:5V, 12V, 24V DC
- Conversion Efficiency:Up to 83%
- Cooling System:Natural air convection
- Protection:Short-circuit, overload, over-voltage protection
- Isolation Voltage:5KV DC between input and output
- Operating Temperature:-25°C to +70°C
- Compact Size:Designed for panel mounting and space-limited setups
Technical Chart
Model | Input Voltage Range (VDC) | Output Voltage (VDC) | Rated Current (A) | Efficiency (%) |
SD-25A | 9–18 | 5 / 12 / 24 | 5 / 2.1 / 1.05 | 80–83 |
SD-25B | 18–36 | 5 / 12 / 24 | 5 / 2.1 / 1.05 | 81–83 |
SD-25C | 36–72 | 5 / 12 / 24 | 5 / 2.1 / 1.05 | 81–83 |
Performance Advantages
- High Efficiency Power Conversion:Reduces power loss and improves system reliability.
- Compact and Lightweight Design:Ideal for small panels and industrial enclosures.
- Excellent Voltage Regulation:Maintains stable output under variable load conditions.
- Advanced Safety Protections:Safeguards connected devices from overload, overvoltage, and short circuits.
- Wide Operating Range:Suitable for diverse DC systems and environments.
- Energy Efficient & Cost Effective:Ensures long operational life with minimal maintenance.
Best Suited Applications
- Industrial automation and control systems
- Communication base stations
- Security and surveillance systems
- Transportation and automotive control systems
- LED lighting systems
- Battery-powered and renewable energy devices
Types of Mean Well DC-DC Converters SD-25 Series
- Mean Well DC-DC Converters SD-25A Supplier– Designed for 9–18V DC input systems, providing reliable 5V, 12V, and 24V DC output. Ideal for automotive, portable devices, and mobile equipmentrequiring low-voltage DC conversion.
- Mean Well DC-DC Converters SD-25B Supplier– Operates efficiently with an 18–36V DC input range, offering stable regulated output voltagesfor industrial automation, PLC control panels, and communication circuits.
- Mean Well DC-DC Converters SD-25C Supplier– Built for 36–72V DC input range, this model is perfect for telecommunication networks, renewable energy setups, and high-voltage industrial control systems,providing superior stability and efficiency.
Differences Between All Types
Each variant offers the same high performance but caters to different input ranges, giving users flexibility based on their specific power system design.
- SD-25A:Optimized for low-voltage input (9–18V), mainly used in mobile or vehicle-mounted systems.
- SD-25B:Works with medium-voltage inputs (18–36V), best for factory automation and communication setups.
- SD-25C:Suited for high-voltage DC inputs (36–72V), making it reliable for telecom and large-scale industrial power systems.
Affordable and Reliable Mean Well DC-DC Converters SD-25 Series in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi
At SCB Industries, we deliver affordable and reliable Mean Well DC-DC Converters SD-25 Series with guaranteed quality, competitive pricing, and dedicated after-sales support. Whether you require the SD-25A, SD-25B, or SD-25C, we ensure quick supply and technical assistance across India’s major industrial regions.
