Mean Well DC-DC Converters DDR-60 Series Supplier
SCB Industries is a trusted and authorized supplier of Mean Well DDR-60 Series DC-DC Converters serving Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi. Below is ready-to-use, SEO-friendly, human-written content for your website, product catalog, or sales sheet describing the DDR-60 family, its features, benefits, model variants (DDR-60G / DDR-60L), differences, typical applications — and why SCB Industries is the best choice for procurement and support.
What is the Mean Well DDR-60 Series?
The Mean Well DDR-60 is a 60 W, DIN-rail mount DC-DC converter series built for industrial control panels and compact systems that require isolated, regulated DC outputs from a DC source. DDR-60 modules are ultra-slim (only 52.5 mm wide) and designed for space-constrained DIN-rail installations while delivering robust protection and high reliability.
DDR-60 series is a 60W DlN Rail type DC-DC converter with main features including DlN rail-type easy installation, ultra slim width (52.5mm), 4:1 ultra wide input voltage, -40~+85℃ wide operating temperature, 4KVdc l/O isolation, adjustable output voltage (± 10%) and full protective functions…etc.
This series has two input options: 9~36V /18~75V and various output options: 5V / 12V / 15V / 24V and can be used for industrial control, security control, communication system and other fields. Suitable applications are DC buck/boost regulator, increasing system insulation level and voltage drop compensation along cable…etc.
Key Features
- Width only 52.5mm (3SU)
- 4:1 ultra wide input range
- -40~+85℃ wide working temperature
- No minimum load required
- DC output adjustable (±10%）
- Cooling by free air convection
- Can be installed on DlN rail TS-35/7.5 or 15
- Protections: Short circuit / Overload / Over voltage / Input reverse polarity / Input under voltage protection
- 4KVdc l/O isolation(Reinforced isolation)
- 3 years warranty
Application
- lndustrial control system
- Semi-conductor fabrication equipment
- Factory automation
- Electro-mechanical
- Wireless network
- Telecom or datacom system
Benefits
- Space-saving design— slim 1-unit width reduces panel real-estate and simplifies wiring.
- Flexible integration— wide input models suit battery, vehicle or solar/battery systems; standard input models suit fixed industrial DC buses.
- Reliable, isolated outputsfor PLCs, sensors, instrumentation and communication modules — protecting downstream electronics and improving system uptime.
- Energy efficient— high conversion efficiency reduces heat and lowers system energy losses.
- Robust protection & certification— built-in protections and international approvals make DDR-60 suitable for demanding industrial deployments.
DDR-60 Types — DDR-60G vs DDR-60L
DDR-60G
- Input range:wide 4:1 (examples: 9–36 VDC or 18–75 VDC depending on SKU).
- Best for:systems with variable voltage sources — battery banks, mixed DC rails, mobile equipment, solar + battery systems, or installations with uncertain input rails.
- Advantages:single SKU covers multiple input rails (simplifies spares and inventory), broader design flexibility.
- Typical outputs:5 V / 12 V / 15 V / 24 V (adjustable).

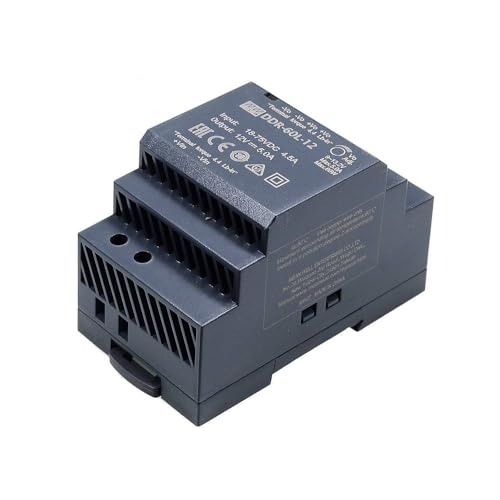

DDR-60L
- Input range:standard 2:1 (examples: 9–18 VDC or 18–36 VDC depending on SKU).
- Best for:fixed DC bus installations such as factory control cabinets and PLC racks where input voltage is stable.
- Advantages:usually more cost-effective for fixed-voltage systems while offering the same protections and reliable output behavior.
Practical Differences
- Flexibility:DDR-60G > DDR-60L.
- Cost:DDR-60L typically slightly cheaper for stable DC systems.
- Use cases:DDR-60G for mobile, battery, solar and mixed-voltage systems; DDR-60L for panel-mounted industrial control racks.
- Thermal design & performance:similar — both use convection cooling, but how long they sustain full load at high ambient temperatures depends on mounting/ventilation and exact model ratings.
Typical Applications
- PLCs, I/O modules and control systems
- Remote telemetry and SCADA RTUs
- Railway / vehicle electronics and onboard systems
- Renewable energy management (battery / solar systems)
- Telecom and network edge devices
- Building automation, security and access control systems
Why SCB Industries is Your Best Choice for DDR-60
- Authorized Mean Well supplier:we supply genuine Mean Well DDR-60 products with full manufacturer warranty and traceability.
- Wide regional coverage:ready to serve Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune and Vapi with local knowledge of industrial needs.
- Stock & fast delivery:project quantities and single-unit orders — we aim to reduce your lead time and keep projects on schedule.
- Technical selection support:our team helps you choose between DDR-60G and DDR-60L, select the correct output voltages, and size for worst-case ambient conditions.
- Competitive pricing & bulk options:cost effective for panel builders and system integrators.
- After-sales & warranty assistance:we coordinate warranty claims and provide replacement options if needed.
- Application know-how:we understand industrial mounting, derating, and thermal considerations to keep your installations reliable.
