Mean Well AC-DC Converters NDR-480 Supplier
SCB Industries stocks and supplies the Mean Well AC-DC Converters NDR-480 family — including the popular Mean Well AC-DC Converters NDR-480-24 and Mean Well AC-DC Converters NDR-480-48 models — with fast service across the region.
The Mean Well NDR-480 series are 480-watt, DIN-rail mounted AC-DC converters engineered for industrial control cabinets, automation systems, and other demanding electrical applications.
SCB Industries supplies the full NDR-480 range with factory-original Mean Well warranty and professional pre-/post-sales support in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi.
Description

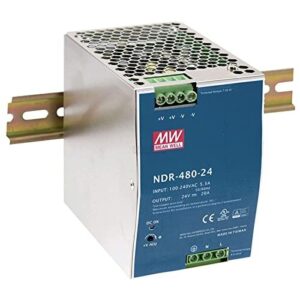

NDR-480 is one economical slim 480W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input f rom 90 VAC to 264 VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.
NDR-480 is designed with metal housing that enhances the unit’s power dissipation. With working efficiency up to 92.5%, the entire series can operate at the ambient temperature between -20℃ and 70℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-480 a very competitive power supply solution for industrial applications.
Features
- Universal AC input / Full range
- Built-in active PFC function
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- 100% full load burn-in test
- 3 years warranty
Applications
- lndustrial control system
- Factory automation
- Electro-mechanical
Core Specifications (typical for NDR-480 series)
- Output Power:480 W nominal (model-dependent).
- Available Outputs:24 V (Mean Well AC-DC Converters NDR-480-24) and 48 V (Mean Well AC-DC Converters NDR-480-48).
- Input Range:Wide AC input for global compatibility (suitable for 100–240 VAC mains environments).
- Mounting:DIN-rail for easy cabinet installation.
- Efficiency:High efficiency design to minimize heat and power loss.
- Protections:Built-in OVP (over-voltage), OCP (over-current), SCP (short-circuit) and OTP (over-temperature) protection.
- Cooling:Natural convection or forced-air friendly — designed for cabinet use.
- Environment:Rugged industrial temperature range and reliable operation for long service life.
Types Available through SCB Industries
- Mean Well AC-DC Converters NDR-480-24– Delivers a 24V DC output, ideal for control panels, PLCs, and industrial automation systems.
- Mean Well AC-DC Converters NDR-480-48– Provides a 48V DC output, suitable for telecom, network, and high-voltage DC applications.
SCB Industries, as a reliable Mean Well AC-DC Converters NDR-480-24 Supplier and Mean Well AC-DC Converters NDR-480-48 Supplier, ensures both models are readily available with full technical support and warranty coverage.
Top Benefits of Choosing Mean Well NDR-480 (and buying from SCB Industries)
- Reliable 480 W performance— designed to supply stable DC power to demanding industrial loads.
- Compact DIN-rail form factor— saves cabinet space and simplifies installation.
- Robust protection features— protects downstream equipment and reduces downtime.
- High efficiency and long life— reduces thermal stress and operating cost.
- Availability of 24 V & 48 V models— flexibility to match system voltage requirements.
- Local availability & support— SCB Industries provides local stock, technical advice, and replacement service across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi.
Applications of Mean Well NDR-480 Series
- Industrial automation control panels and PLC power supplies.
- Machine tools, packaging, and production-line equipment.
- Building management systems and HVAC controls.
- Telecom and network equipment (48 V variants).
- Instrumentation, sensors and field devices in factories and plants.
- Any DC bus or rack system requiring a dependable 480 W DIN-rail power supply.
Top Reasons to Buy Mean Well AC-DC Converters NDR-480 from SCB Industries
- Genuine Mean Well productswith traceability and warranty.
- Regional coverage— direct supply to Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi.
- Technical support— expert guidance to select the right NDR-480 model (24 V vs 48 V), sizing, and accessory recommendations.
- Competitive pricing & bulk availability— ideal for projects, OEM runs, and spares stocking.
- After-sales service— we assist with installation tips, commissioning checks, and warranty claims if needed.
- Fast logistics— local dispatch and coordinated delivery to your site.
How SCB Industries Ensures Customer Satisfaction
- Authorized sourcing— we supply genuine Mean Well AC-DC Converters with proper documentation.
- Pre-sales engineering support— quick, practical advice to match the right NDR-480 model to your system.
- Quality checks— every unit is inspected before dispatch to reduce field issues.
- Flexible order options— single units, project quantities, or recurring supply contracts.
- Responsive service— phone/email support for technical questions, returns, and warranty assistance.
- Local presence— regional logistics and pickup points across the covered states for faster delivery.
Ready to Order or Need Datasheets?
If you want the exact datasheet, pricing for Mean Well AC-DC Converters NDR-480-24 or NDR-480-48, lead times, or bulk discounts, tell us which model and quantity you need and your delivery city (Kolkata, Howrah, Bhubaneswar, Patna, Raipur, Guwahati, Ahmedabad, Pune, Vapi, etc.). SCB Industries will provide datasheets, official Mean Well certifications, and a competitive quote.
