Mean Well AC-DC Converters LRS-200 Supplier
SCB Industries is a trusted Mean Well AC-DC Converters LRS-200 Supplier, delivering genuine and high-performance power supplies for industrial and automation applications. We reliably supply Mean Well LRS-200 series converters across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi, ensuring quality products, competitive pricing, and prompt delivery.
Description
LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-200 that the whole series operates from -25℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to easily meet the worldwide energy requirement. LRS-200 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC/UL 62368-1.
LRS-200 series serves as a high price-to-performance power supply solution for various industrial applications.
Features
- ‧AC input range selectable by switch
- ‧Withstand 300VAC surge input for 5 second
- ‧Protections: Short circuit / Overload / Over voltage /
- Over temperature
- ‧Cooling by free air convection
- ‧1U low profile
- ‧Withstand 5G vibration test
- ‧LED indicator for power on
- ‧No load power consumption<0.75W
- ‧100% full load burn-in test
- ‧High operating temperature up to 70℃
- ‧Operating altitude up to 5000 meters (Note.8)
- ‧High efficiency, long life and high reliability
- ‧3 years warranty
Applications
- ‧Industrial automation machinery
- ‧Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or
- apparatus
About LRS-200 Series
The Mean Well LRS-200 Series is a highly efficient, enclosed-type AC-DC power supply designed to deliver reliable performance in demanding industrial and automation applications. With a 200 W output power capacity, this series is compact, energy-saving, and built to meet global safety and EMC standards, making it a preferred choice for manufacturers, control panels, and automation systems. The LRS-200 Series provides a universal AC input (85 ~ 264 VAC) and DC output in multiple voltage variants, ensuring stable operation even under fluctuating power conditions.
Key Features of Mean Well LRS-200 Series
- Universal AC input / Full range (85 ~ 264 VAC)
- High efficiency up to 90 %for reduced energy consumption
- Low no-load power consumption (< 0.75 W)
- Compact 1U low-profile design (30 mm height)
- Built-in active PFC (Power Factor Correction)
- Cooling by free air convection
- Protection features:short circuit, overload, overvoltage, and over-temperature
- LED indicatorfor power-on status
- Complies with international safety standards(UL, CE, EN, EAC, etc.)
- Long-life electrolytic capacitorsfor durability and stability
Benefits of Using Mean Well LRS-200 Series
- Reliable performancein industrial environments
- Energy-efficient designlowers operational costs
- Compact form factorsaves panel space
- Wide operating temperature range (-25 °C to +70 °C)
- Flexible mounting optionsfor easy integration
- High stability and long service life
Available Types of Mean Well LRS-200 Series
SCB Industries offers the complete range of LRS-200 models to meet diverse voltage requirements:

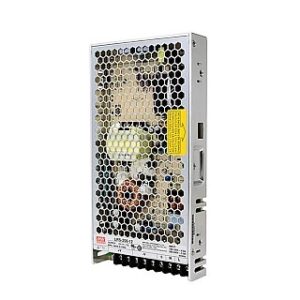

Mean Well AC-DC Converters LRS-200-12 Supplier
- Output Voltage: 12 V DC
- Output Current: 7 A
- Ideal for low-voltage control circuits, LED systems, and instrumentation.

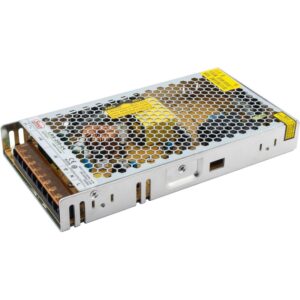

Mean Well AC-DC Converters LRS-200-24 Supplier
- Output Voltage: 24 V DC
- Output Current: 8 A
- Commonly used in industrial automation, motor drives, and PLC systems.
Mean Well AC-DC Converters LRS-200-36 Supplier
- Output Voltage: 36 V DC
- Output Current: 9 A
- Suitable for heavy-duty equipment and machine control panels.

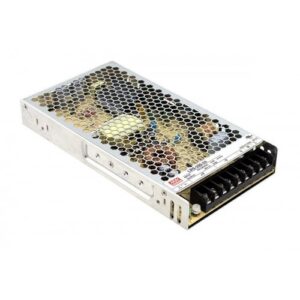

Mean Well AC-DC Converters LRS-200-48 Supplier
- Output Voltage: 48 V DC
- Output Current: 5 A
- Best for telecommunication devices, charging systems, and high-voltage automation circuits.
Difference Between All LRS-200 Models
|
Model |
Output Voltage |
Output Current |
Typical Applications |
|
LRS-200-12 |
12 V DC |
16.7 A |
LED lighting, instrumentation |
|
LRS-200-24 |
24 V DC |
8.8 A |
Industrial automation, motor control |
|
LRS-200-36 |
36 V DC |
5.9 A |
Machine tools, robotics |
|
LRS-200-48 |
48 V DC |
4.5 A |
Telecom, networking, high-voltage systems |
The main difference lies in output voltage and current ratings, allowing users to choose a model that perfectly matches their application’s power requirements.
Why Choose SCB Industries for Mean Well Power Solutions?
- Authorized and Trusted Supplier of Mean Well products
- Wide range of AC-DC and DC-DC converters available ex-stock
- Technical expertise and after-sales support for your applications
- Competitive pricing and timely delivery across all major regions
- Serving multiple locations: Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi
- Customer-centric approach ensuring long-term satisfaction
Premium Mean Well LRS-200 Series Available at SCB Industries
If you are looking for reliable and efficient Mean Well AC-DC Converters LRS-200 Series, SCB Industries is your trusted partner. We provide original products, complete technical guidance, and prompt service to ensure your systems perform at their best.
