Mean Well AC-DC Converters LRS-100N2 Supplier
SCB Industries is a trusted Mean Well AC-DC Converters LRS-100N2 Supplier in Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi, offering a complete range of high-performance industrial power supply solutions. The Mean Well LRS-100N2 Series is a compact, reliable, and energy-efficient AC-DC converter series designed to deliver consistent power output across various industrial and automation systems.
Description
LRS-100N2 series is a 100W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~264VAC input, the entire series provides an output voltage line of 12V, 24V, 36V and 48V. In addition to the high efficiency up to 90.5%, the design of metallic mesh case enhances the heat dissipation of LRS-100N2 that the whole series operates from -30℃ through 70℃ under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily meet the worldwide energy requirement. LRS-100N2 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN61558-1/-2-16, UL62368-1, BS EN/EN60335-1 and GB4943. LRS-100N2 series
serves as a high price-to-performance power supply solution for various industrial applications. Moreover, LRS-100N2 can provide 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
Features
- ‧Universal AC input / Full range
- ‧Withstand 300VAC surge input for 5 second
- ‧Up to 200% peak power capability
- ‧Protections: Short circuit / Overload / Over voltage
- ‧Cooling by free air convection
- ‧Miniature size and 1U low profile
- ‧Compliance to IEC/BS EN/EN61558-1 and 62368-1
- ‧Operating altitude up to 4000 meters
- ‧Withstand 5G vibration test
- ‧LED indicator for power on
- ‧No load power consumption<0.5W
- ‧Over voltage category Ⅲ(OVC Ⅲ)
- ‧High operating temperature up to 70℃
- ‧High efficiency, long life and high reliability
- ‧3 years warranty
Applications
- Industrial automation machinery
- Industrial control system
- Mechanical and electrical equipment
- Electronic instruments, equipments or apparatus
- For inductive and capacitive load
Product Summary – What is Mean Well LRS-100N2 Series?
The Mean Well AC-DC Converters LRS-100N2 Series are enclosed type power supplies with a universal AC input range of 85–264VAC and built-in active PFC function. Engineered for high efficiency and durability, these converters provide up to 90% efficiency and can operate at ambient temperatures up to 70°C under forced air cooling. With compact metal housing and built-in protection features, they are ideal for space-saving industrial applications.
Outstanding Features of Mean Well AC-DC Converters LRS-100N2 Series
- Universal AC Input (85~264VAC)and full range compatibility.
- High Efficiency up to 90%, ensuring lower energy loss and better thermal performance.
- Built-in Active PFC Functionfor improved power quality.
- Ultra-compact Low-profile Design (30mm height)suitable for tight installations.
- Short Circuit, Overload, Over Voltage, and Over Temperature Protections.
- Cooling by Free Air Convectionfor silent and reliable operation.
- LED Power Indicatorfor quick operational status checks.
- Complies with International Safety Standards (UL, EN, and CE Certified).
Benefits of Using Mean Well AC-DC Converters LRS-100N2
- Energy Efficient:Reduced power loss and improved operational cost savings.
- Reliable & Long-lasting:Designed for high durability in demanding industrial environments.
- Compact Size:Saves space inside control panels and enclosures.
- Stable Output:Ensures consistent voltage supply even in variable load conditions.
- Flexible Application Use:Supports automation, lighting, machinery, and electronic systems.
Types of Mean Well LRS-100N2 Series

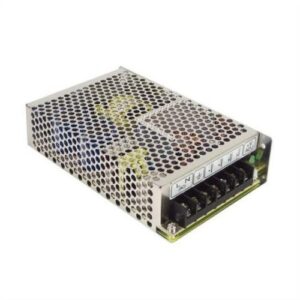

Mean Well AC-DC Converters LRS-100N2-12
The Mean Well AC-DC Converters LRS-100N2-12 model delivers a 12V DC output with a current of 8.5A and total power up to 102W. It offers high efficiency (up to 88%), built-in protection against overload, and compact metal casing for easy installation.
- Output Voltage:12V DC
- Output Current:5A
- Applications:Ideal for LED lighting, low-voltage control circuits, and small automation systems.
Mean Well AC-DC Converters LRS-100N2-24
The Mean Well AC-DC Converters LRS-100N2-24 provides a 24V DC output at 4.5A, ensuring a stable power supply for industrial and electronic equipment. With an efficiency of up to 90%, it is ideal for PLCs, process control units, and telecommunication devices.
- Output Voltage:24V DC
- Output Current:5A
- Applications:Perfect for PLCs, process control, and telecommunication equipment.
Mean Well AC-DC Converters LRS-100N2-36
The Mean Well AC-DC Converters LRS-100N2-36 model delivers 36V DC output at 2.8A, offering high reliability and protection features such as short-circuit, overload, and overvoltage protection. It’s a preferred choice for robotic systems, industrial drives, and factory automation.
- Output Voltage:36V DC
- Output Current:8A
- Applications:Used in industrial tools, automation panels, and motor control systems.

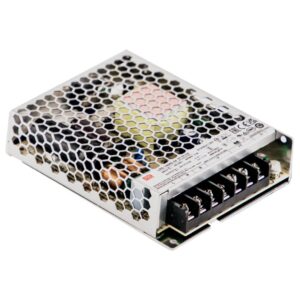

Mean Well AC-DC Converters LRS-100N2-48
The Mean Well AC-DC Converters LRS-100N2-48 offers 48V DC output at 2.1A with excellent energy efficiency up to 91.5%. Designed for consistent operation under demanding conditions, it supports communication equipment, process control systems, and automation networks.
- Output Voltage:48V DC
- Output Current:1A
- Applications:Suitable for factory automation, test equipment, and power transmission systems.
Difference Between All Types of LRS-100N2
Each model differs primarily in output voltage and current capacity, making it easy to choose the right one for your specific industrial or automation need.
|
Model |
Output Voltage |
Output Current |
Typical Applications |
|
LRS-100N2-12 |
12V DC |
8.5A |
LED Lighting, Low Voltage Panels |
|
LRS-100N2-24 |
24V DC |
4.5A |
PLC, Process Automation |
|
LRS-100N2-36 |
36V DC |
2.8A |
Machine Control, Instrumentation |
|
LRS-100N2-48 |
48V DC |
2.1A |
Industrial Automation, Power Units |
Reliable Support for Mean Well AC-DC Converters LRS-100N2 Supplier
At SCB Industries, we not only supply the Mean Well LRS-100N2 Series but also provide complete technical assistance, ensuring customers select the ideal power converter for their systems. Our prompt after-sales support, stock availability, and authentic Mean Well products make us a preferred partner across Eastern and Western India.
Why Choose SCB Industries for Mean Well AC-DC Converters?
- Authorised Mean Well Supplierwith proven reliability.
- Extensive Inventoryof Mean Well AC-DC and DC-DC converters.
- Expert Technical Supportfor system integration and installation.
- Competitive Pricingfor bulk and project-based requirements.
- Quick Deliveryacross Kolkata, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi.
- Customer Satisfaction First:Trusted by leading industries and automation experts.
