PLC DVP-SE2 Series Supplier
SCB Industries is a reliable PLC DVP-SE2 Series Supplier, delivering genuine Delta PLC solutions to industries across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi, ensuring quality products, competitive pricing, and timely supply.
Description
The second generation DVP-SE2 Series with built-in dual Ethernet ports (switch) facilitates easy network building. The SE2 Series not only enables daisy chain topology but also greatly reduces wiring time.
Compared with the first generation, the SE2 Series accelerates program execution speed and continuously strengthens the market share of small PLCs, especially in Europe and America where the DVP Slim Series is widely adopted.
Product Introduction
Features & Benefits
- High efficiency: A 32-bit high-speed processor supports an overall PLC program execution speed approximately one time as fast as the DVP-SE host. Built-in 3 high speed counters offer a Max. frequency of 100 kHz each; four-axis (8 points) provide a high speed position output at 100 kHz
- Max. I/O: Supports more inputs and outputs (up to 512 digital I/Os) and 8 right-side extension modules and 8 left-side high-speed extension modules
- Larger program capacity: 64k steps and memory (general registers: 12k; memory for storing parameters: 8k)
- Supports IL, LD, SFC
- Standard USB 2.0 interface: Saves time downloading the program, monitoring the program, and configuring the hardware
- Built-in CAN communication port: For Delta 8-axis servo. CANopen DS301 communication mode (up to 16 slaves)
- Built-in 10/100 M Ethernet communication interface: Includes built-in switch function or dual IP mode (FW V1.04), allowing for daisy chain topology configuration without the need for additional switches
- Built-in Ethernet interface support, Modbus TCP Client/Server, Ethernet/IP Adapter, TCP/UDP Socket
- Supports Webpage (FW V1.04)
Applications
Remote device monitoring, production line monitoring, building automation, printing machine, container filler (recipe application)
Specifications
Software
ISPSoft V3.20 or later version
Execution Speed
0.35 us (LD) ; 1.29 us (MOV)
Program Capacity
64K steps
Built-in
24 VDC powered CPU module, 2 x Ethernet port (switch), 2 x RS-485 ports, 1 x USB & CAN port, 1 x Micro SD interface, supporting 28 I/O (16DI+12DO), removable terminal blocks
Max. I/O Points as Total
512 (includes SE2 built-in 16DI+12DO; right side: Max. 8 extension modules; left side: Max. 8 extension modules)
Built-in I/O Points
28: 16DI + 12DO
Model
DVP28SE211T (NPN output)
DVP28SE211S (PNP output)

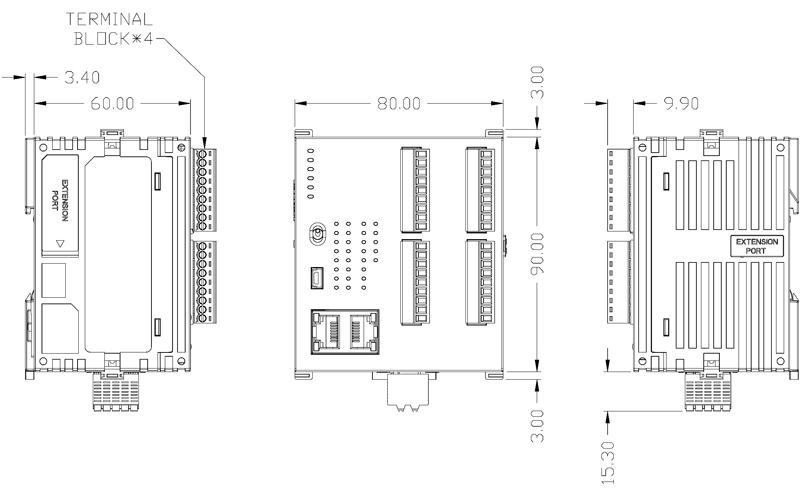

Dimensions
DVP28SE2
(Unit: mm)
What Is PLC DVP-SE2 Series?
The Delta DVP-SE2 Series PLC is a next-generation compact programmable logic controller designed to deliver high-speed performance, advanced communication, and flexible expansion capabilities. As a trusted Delta PLC Supplier, SCB Industries offers the DVP-SE2 Series across Kolkata, West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi, helping industries modernize automation systems with reliability and precision. This Ethernet-enabled PLC series is ideal for small to medium automation projects that demand cost-effectiveness, speed, and multi-protocol communication — all packed into a compact design.
Key Features of PLC DVP-SE2 Series
- Built-in Ethernet Port:
The DVP-SE2 Series comes with an embedded Ethernet portsupporting Modbus TCP, Ethernet/IP, and other protocols for real-time communication and remote control. - Compact and Modular Design:
Small in size yet powerful in function — supports up to 8 expansion modulesincluding digital, analog, and communication modules. - High-Speed Processing:
Features a basic instruction execution time of just 0.24 µs, ensuring quick and accurate control responses. - Enhanced Memory Capacity:
Offers up to 16k steps of program memory, supporting complex control logic and process automation requirements. - Multiple Communication Ports:
Built-in RS-232, RS-485 (Modbus ASCII/RTU), and Ethernetports for seamless data exchange and connectivity. - Advanced Control Functions:
Includes PID control, high-speed counters, and pulse outputfunctionalities suitable for dynamic applications. - Dual Power Input:
Supports both AC and DC models, allowing flexible installation across varied setups.
Technical Chart – PLC DVP-SE2 Series
|
Model |
Power Supply |
Digital I/O |
Processing Speed |
Program Memory |
Communication Ports |
Expansion Modules |
|
DVP12SE2 |
24VDC / 100-240VAC |
8DI / 4DO |
0.24 µs / instruction |
16k steps |
RS-232 / RS-485 / Ethernet |
Up to 8 modules |
|
DVP20SE2 |
24VDC / 100-240VAC |
12DI / 8DO |
0.24 µs / instruction |
16k steps |
RS-232 / RS-485 / Ethernet |
Up to 8 modules |
|
DVP28SE2 |
24VDC / 100-240VAC |
16DI / 12DO |
0.24 µs / instruction |
16k steps |
RS-232 / RS-485 / Ethernet |
Up to 8 modules |
|
DVP32SE2 |
24VDC / 100-240VAC |
16DI / 16DO |
0.24 µs / instruction |
16k steps |
RS-232 / RS-485 / Ethernet |
Up to 8 modules |
Top Benefits of Choosing DVP-SE2 Series
- Real-Time Connectivity:Built-in Ethernet port allows remote monitoring and integration with industrial networks.
- Superior Speed:Faster cycle times improve system efficiency and productivity.
- Compact & Expandable:Ideal for small panels yet scalable for future expansions.
- Energy-Efficient Design:Consumes less power while delivering consistent output.
- Easy Programming:Compatible with ISPSoft and WPLSoft, simplifying logic design and system setup.
- Long-Term Reliability:Built with industrial-grade components for 24/7 operation in demanding environments.
Best Suited Applications
The Delta PLC DVP-SE2 Series is widely used across industries due to its compact size, Ethernet capability, and robust performance.
Applications include:
- Packaging and Filling Machines
- Material Handling & Conveyor Systems
- Food & Beverage Processing Units
- Energy Monitoring Systems
- Automotive Manufacturing
- Textile and Printing Equipment
- Water Treatment and Pump Control
- HVAC and Lighting Control Systems
Top Reasons to Buy PLC DVP-SE2 Series from SCB Industries
- Top-Quality PLC Supplier in Kolkata and Pan-India:100% authentic Delta PLC DVP-SE2 Series.
- Widespread Distribution Network:Delivering across West Bengal, Odisha, Bihar, Chhattisgarh, Assam, Gujarat, Pune, and Vapi.
- Affordable and Reliable PLC Supplier:Cost-effective automation without compromising on performance.
- Expert Technical Assistance:Guidance in PLC selection, programming, and installation.
- Quick Delivery and Service:Fast shipping and strong after-sales support.
Why Our PLC DVP-SE2 Series Is Ideal for Regional Needs
The DVP-SE2 Series is specifically designed to meet industrial demands in Indian conditions, including voltage fluctuations, humidity, and temperature variations.
- Perfect for Local Automation Needs:From small workshops to advanced process industries.
- Seamless System Integration:Works efficiently with Delta HMIs, VFDs, and sensors.
- Trusted by Engineers & Integrators Across Eastern and Western India.
